نام محصول:
دریچه سوزن
نام انگلیسی:
Needle valve
برند:
AVS Römer
مشخصات:

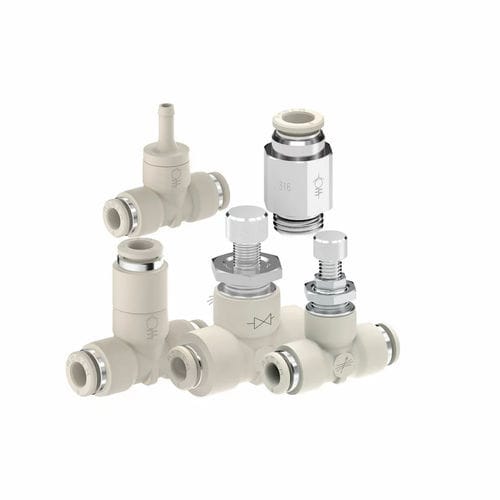

The AVS Römer flow and stop valve program consists of throttle, shut-off and check valves. The function fittings offer fine adjustment possibilities for the precise regulation of fluid flows.
Throttle valves (push-in)
Throttle valves ensure optimum tightness and adjustability. The throttle function is regulated by an adjustable annular gap inside the valve. This gap is increased or decreased by turning the knurled screw or slotted screw.
Shut-off valves (push-in)
Shut-off valves control the flow of fluids in liquid and gas installations by the controlled opening or closing of cross-sections and pipelines.
Check valves (push-in)
Check valves allow flow in one direction and reliably prevent backflow of the medium. Versions in metal as well as plastic and various designs such as swing check valves or double check valves meet the most diverse requirements.
توضیحات:
Type
needle
Operation
hydraulic
Function
for control, shut-off, regulating
Media
for gas
Body
metal, plastic
Applications
for food applications, for liquids, for the pharmaceutical industry
Other characteristics
ANSI, with connection
DN
4 mm, 6 mm, 8 mm(0.157 in, 0.236 in, 0.315 in)
Pressure
Max.: 20 bar(290.1 psi)Min.: 0 bar(0 psi)
Temperature
Max.: 140 °C(284 °F)Min.: 0 °C(32 °F)
