نام محصول:
دریچه سوزن
نام انگلیسی:

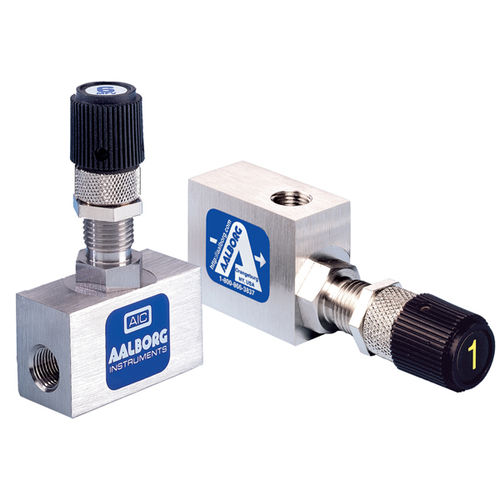

Needle valve VB BARSTOCK
برند:
Aalborg Instruments
مشخصات:
Designed for controlling a broad range of flow rates of liquids and gases, CV™ Utility valves are available in three conveniently overlapping orifice-needle sizes. These versatile, rugged and reliable, valves are suitable for laboratory instrumentation, bench top or OEM flow control purposes.
bubble tight shutoff
straight (180 degree) or 90 degree flow patterns
Valves are offered in straight (T) and 90 degree (L) flow patterns. All valves are supplied with 1/8” FNPT inlet and outlet ports.
Valve cartridges are also interchangeable with built-in valves of Aalborg’s series of P, T, S, and G flow meter product line.
The valve body is precision machined chrome plated brass or type 316 stainless steel.
MATERIALS OF CONSTRUCTION
O-RINGS PTFE and Buna-N standard with brass valves; PTFE and Viton® standard with 316 stainless steel valves; optional Viton®, PTFE/Kalrez®, EPR
CONNECTIONS 1/8 inch female NPT
VITON® and KALREZ® are registered trademarks of DuPont Dow Elastomers
توضیحات:
Type
needle
Operation
manual
Function
flow control, shut-off, flow control
Media
for water, for gas, for air
Body
threaded, straight, stainless steel, chrome-plated brass, PTFE
Applications
for water, liquids, laboratory, OEM
DN
0.125 in
Pressure
Max.: 34.5 barMin.: 0 bar(0 psi)
Temperature
Max.: 121 °C(250 °F)Min.: 0 °C(32 °F)
Flow rate
3.5 l/min(0.92 us gal/min)
