نام محصول:
دریچه روشن/خاموش
نام انگلیسی:

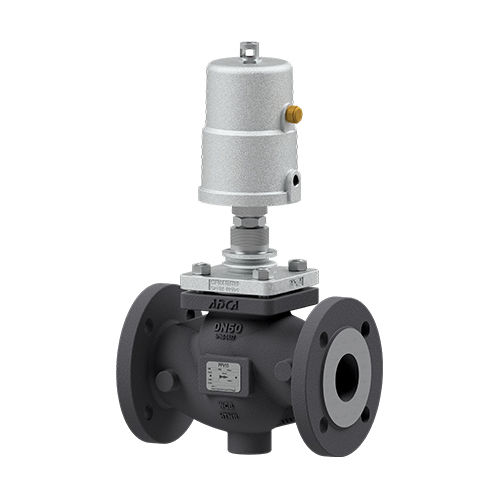

On/off valve PPV15
برند:
VALSTEAM ADCA Engineering S.A.
مشخصات:

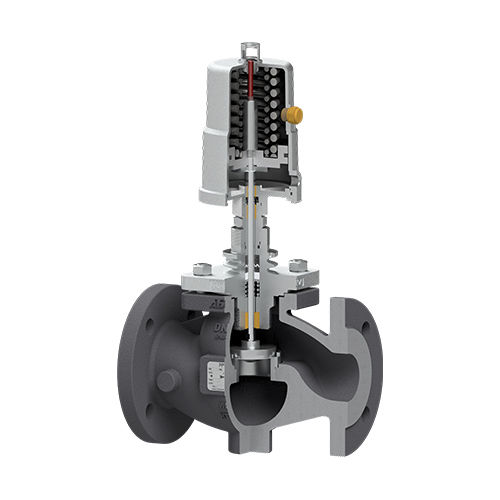

The ADCATrol PPV15 is a series of single seated, two-way pneumatic on/off globe valves with piston actuator. These valves are suitable for use with the most common process fluids such as steam, water, superheated water, air, neutral gases and oils.
MATERIAL:
SG iron, carbon steel or stainless steel
EN/SIZES:
DN 15 to DN 50
ASME/SIZES:
1/2″ to 2″
EN/CONNECTIONS:
PPV15G – Flanged EN 1092-2 PN 16
PPV15S and PPV15i – Flanged EN
1092-1 PN 16 or PN 40
ASME/CONNECTIONS:
Flanged ASME B16.5 Class 150 or 300
توضیحات:
Type
piston actuator
Operation
pneumatic
Function
on/off
Media
for water, for oil, for steam, for air
Applications
process
Material$
stainless steel, SG iron, carbon steel
Number of channels
2-way
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
11.2 bar, 40 bar(162.4 psi, 580.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 400 °C(752 °F)
