نام محصول:
دریچه را متوقف کنید
نام انگلیسی:
Stop valve STP series
برند:
METAL WORK
مشخصات:

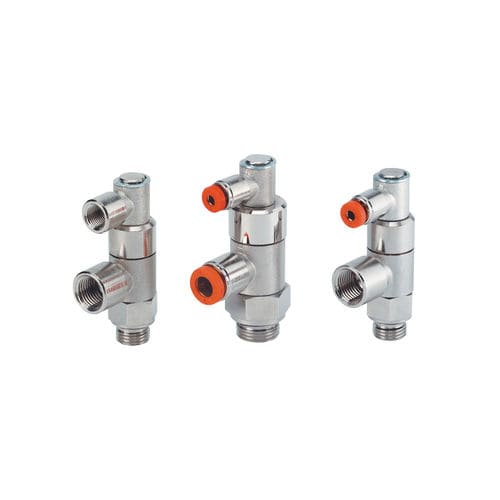

Stop valves mounted on the cylinder inlets allow a flow of air only in the presence of an pneumatic pilot. Unidirectional and bidirectional versions are available. This item is mainly used as a safety valve. When pressure drops in the pneumatic pilot, all cylinder movement is halted
• Short description: : Block valve s STP bi-directional s 1/8-1/8
• Quantity per package: : 10
• Minimum order quantity: : 10
• Unit of measure: : items
• Body material : Brass
• Flow (6 bar) (Nl/min) : 320
• Functional denomination : Valve – block bidirectional
• Max input pressure (bar) : 010
• Max temperature (°C) : 60
• Min input pressure (bar) : 0.5
• Min temperature (°C) : -10
• Product’s series : Valve series STP
• Push-in fitting for pipe (Ø) : 8
• Thread type : Cylindrical
• Threaded port : 1/8″
توضیحات:
Type
piston
Operation
pneumatically-operated
Function
stop
Media
for air
Applications
for pneumatic cylinders
Material$
nickel-plated brass
Other characteristics
bidirectional, unidirectional
DN
Min.: 0.125 inMax.: 0.5 in
Pressure
Min.: 0.5 bar(7.3 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
Flow rate
Min.: 250 l/min(66.04 us gal/min)Max.: 1,700 l/min(449.09 us gal/min)
