نام محصول:
دریچه را متوقف کنید
نام انگلیسی:
Stop valve SV / SVS
برند:
APV
مشخصات:

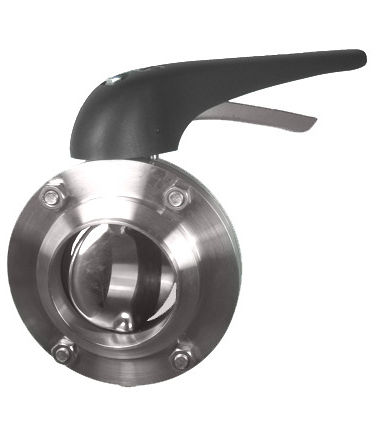

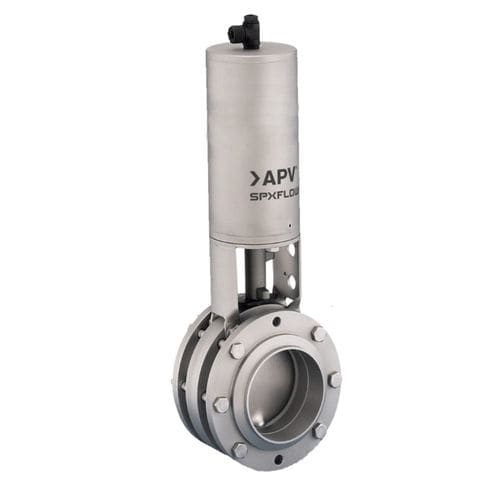

The DELTA butterfly valves from SPX FLOW are stop valves which can be actuated either manually or pneumatically. The valves are very robust and reliable and the space saving design makes them ideal for nearly all applications – a flexible valve which is very easy to install and to service.
Advantages
•Product passages are smooth and the special seals ensure thorough cleaning.
•Unique metallic stop prevents the valve flanges from being tightened too much and protects the valve seal from mechanical over-stress thus improving seal lifetime.
•One actuator covers all diameters from 1″ (25 mm) – 4″ (100 mm).
•Slide bearings on the pivots of the discs increase operating reliability.
•Visual indication of open/closed position.
•SVS1F intermediate flange design allows simple removal and easy access of valves that are in lengthy or fixed pipelines.
•ATEX compliant models
•Designs with electro-pneumatic control (flow control) with Bürkert positioner
توضیحات:
Type
butterfly
Operation
manual, pneumatically-operated
Function
stop, flow control
Media
beverage, for dairy products, for chemicals
Applications
for the chemical industry, beverage
Material$
stainless steel
Other characteristics
ATEX
DN
Min.: 25 mm(0.984 in)Max.: 250 mm(9.843 in)
Pressure
10 bar(145 psi)
Temperature
140 °C(284 °F)
