نام محصول:
دریچه دو مرحله

نام انگلیسی:
Two-stage valve BJSU Series

برند:
NIHON PISCO CO., Ltd.

مشخصات:
Industry’s First!

It enables same control as the cylinder with shock absorber. (Patent no. 5578502)

Shock absorber is not required.

Two-stage exhaust flow rate adjustment is realized. By using 2nd stage exhaust speed to be as cushion (brake), controlling like a shock absorber is possible.

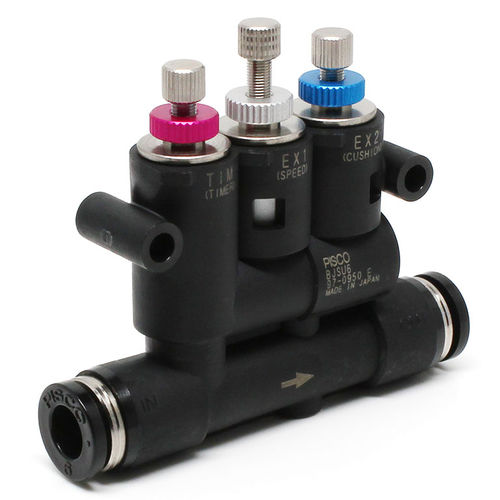

Speed control (EX1), shock absorbing (cushion) strength (EX2), and start timing of shock absorber (TIM) are separately adjustable.

e.g. Can be reduced the shock to 1/9 while keeping the same cycle time.

Durability is about 3 times of a cylinder mounting type shock absorber.

Durability of BJSU is more than 3 times of a normal shock absorber, which is directly mounted on a cylinder. Thus, reducing the cost and the frequency of the maintenance are possible.

Large flow type of tube size : ø4, ø6 and ø8mm were newly added.

Enables to ensure larger flow rate with same tube size as conventional type.

توضیحات:
Type
needle

Operation
with handwheel, pneumatic

Function
flow control, flow regulator

Media
for compressed air

Body
straight, PBT

Applications
for pneumatic cylinders, shock-absorber

Associated function
exhaust, speed regulator

Other characteristics
for high flow rates, push-in, pneumatically-operated, two-stage, quick-connect

DN
4 mm, 6 mm, 8 mm, 10 mm(0.157 in, 0.236 in, 0.315 in, 0.394 in)

Pressure
Min.: 0.2 MPaMax.: 1 MPa
