نام محصول:
دریچه دو دست
نام انگلیسی:
Two-handed valve BSD3000
برند:
SIRAL
مشخصات:

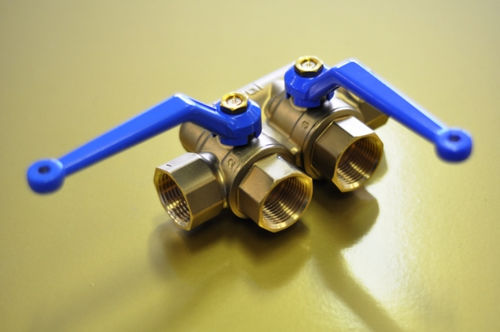

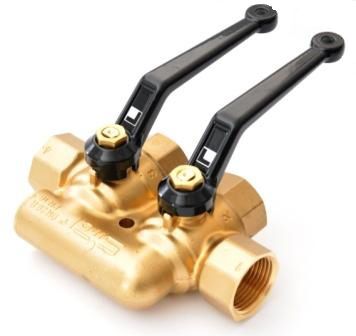

The Siral BSD3000 is a double ball valve with by-pass, service and drain functions, intended for hot/cold water, steam and glycol (50% content). It is capable of withstanding a maximum pressure rating of PN16 at temperatures from -40 to 160 °C. It is equipped with female ISO7/1 Rp threaded connections of 3/4″ size, DN 20 and 1″ size, DN25.
توضیحات:
Type
ball
Operation
lever
Function
double block-and-bleed, purge
Media
for seawater, for hydrocarbons, fuel oil, for steam
Body$
threaded
Applications
for industrial applications, for heating, HVAC
Material$
brass
Other characteristics
bypass, two-handed
DN
Min.: 0.45 inMax.: 1 in
Pressure
16 bar(232.1 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 160 °C(320 °F)
