نام محصول:
دریچه دستی
نام انگلیسی:
Manual valve 36V series
برند:
Maximator GmbH
مشخصات:

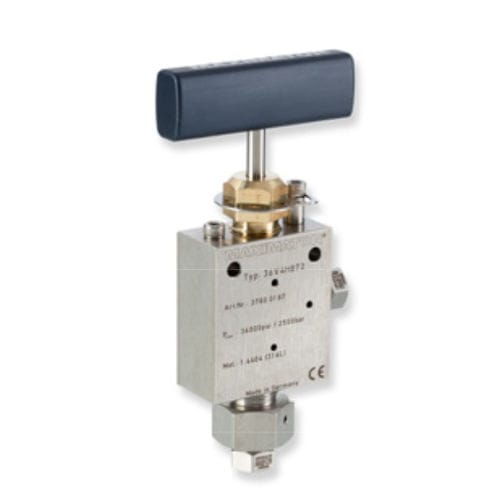

The 36V system is a stainless steel valve that can be operated using a regulating shaft. It has non-rotating stem that provides dependability, and long service lifespans of the device. It can withstand extreme working conditions and temperature.
This system can be acquired in six different structures, and can be integrated with liquids and gases. Each of them consists of a collar and gland. Every characteristic of the device is recorded including batch number, material number, type designation and maximum pressure.
This apparatus’ seal is made from carbon and PTFE and has an orrifice size of 0.125 inch or 3.2 mm.
توضیحات:
Operation
manual
Function
regulating
Media
for gas
Material$
stainless steel
Number of channels
3-way
Other characteristics
high-pressure
DN
Min.: 0.25 mm(0.01 in)Max.: 14.3 mm(0.563 in)
Pressure
2,500 bar(36,259.4 psi)
Temperature
Min.: -252 °C(-422 °F)Max.: 650 °C(1,202 °F)
