نام محصول:
دریچه دستی

نام انگلیسی:
Manual valve M25 series

برند:
Frank W Murphy Ltd.

مشخصات:
Instant Response to Shut Off Signal

Positive Valve Closure

Vents Gases Trapped After Shutdown

Explosion-proof Models Available

Models Available for Magneto, CD Ignition or 24 VDC

Normally Energized Model Available

These fuel shutoff valves are semi-automatic devices for shutdown of natural gas-fueled engines. The valve is opened manually and closes when the electromagnet is energized and trips the latch. The valve can be closed manually by turning the disconnect knob. A normally energized model is available that holds the valve open electrically and closes when the coil is de-energized. A vent in the valve body relieves trapped gas when the valve closes. A pop-out indicator button informs you when the valve is open or closed.

The valve’s tripping power is provided by an engine ignition system or battery. Models are available for magneto, CD ignition or 24-V battery.

The M2582 is a 1-inch (25 mm) valve with one NPT connection. It has one SPDT snap-switch. The valve body is made of sandcast aluminum. It does not include the open/close indicator button.

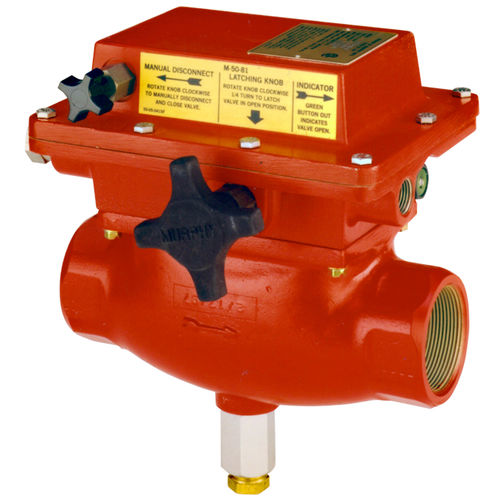

The M5081 is a 2-inch (51 mm) valve with two NPT connections. It has two SPDT snap-switches. The valve body is available in sandcast aluminum or cast steel (optional).

The M5081FS is the same as the M5081 but has a normally energized circuit. This circuit allows the valve to be held open electrically and close by interruption of the coil’s power circuit. A manual disconnect/trip knob is not available on this model.

توضیحات:
Operation
manual

Function
shut-off

Media
for natural gas

Applications
engine, fuel

DN
25 mm(0.984 in)
