نام محصول:
دریچه دروازه چاقو
نام انگلیسی:
Knife gate valve VDI series
برند:
WAMGROUP S.p.A
مشخصات:
VDI Inclined Slide (Feeder) Valves add to the function of material flow by gravity interception the ability to control the material flow. The particular asymmetrical geometry of the blade enables flow adjustment adding, within certain limits, volumetric feeding properties to the unit.

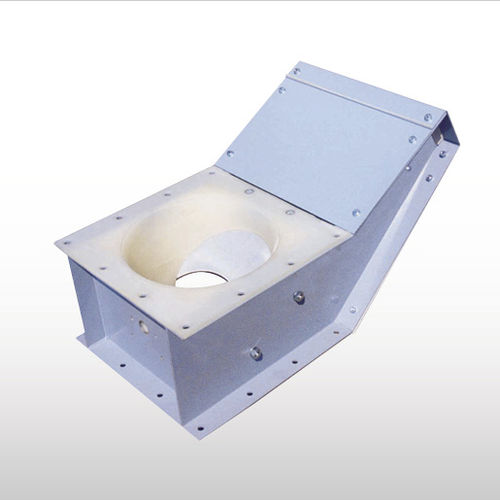

The inclined blade of the VDI Inclined Slide Valve forms an eye-shaped aperture with the asymmetrically tapered inner body. The wider the eye is opened, the more material flows through, the further it is closed the more the material flow is reduced.
The inner body consists of a self-supporting SINT engineering polymer composite cast. The blade is manufactured from carbon or stainless steel. The valve can be operated manually, pneumatically or by electric gear motor. Intermediate blade positions instead of a complete opening are obtained through position sensors. To enforce material flow at low flow rates the dustproof VDI valve can be equipped with an additional pneumatic hammer that imparts repetitive percussions to the internal valve body during operation.

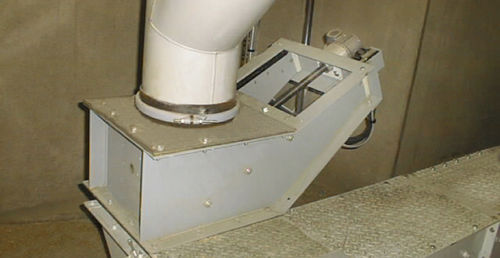

VDI Inclined Slide (Feeder) Valves add to the simple function of material flow by gravity interception the ability to control the material flow. The particular asymmetrical geometry of the blade enables flow adjustment adding, within certain limits, volumetric feeding properties to the unit. VDI valves can be mounted on the outlet of hoppers, tanks, silos, screw conveyors, or on the inlet of loading bellows. Due to the different blade options they are used virtually in all industries, food-grade applications included.
توضیحات:
Type
knife gate
Operation
manual, electropneumatic
Function
flow control, metering
Body$
angle seat, asymmetrical
Applications
for food applications, for silos, for the construction sector, cement, for the cosmetics industry
Material$
stainless steel, carbon steel
Other characteristics
electromechanical
DN
Min.: 137 mm(5.394 in)Max.: 360 mm(14.173 in)
