نام محصول:
دریچه دروازه چاقو
نام انگلیسی:
Knife gate valve 4000 series
برند:
Valtorc
مشخصات:
Air cylinder actuated knife gate valves are available from 3″ to 24″ in size. Available in standard pressure ratings of 150PSI (ANSI B16.5 Class 150), heavy duty fabricated carbon steel or stainless steel knife gate valve material available. Stainless steel gate and stem for corrosion resistance and durability. Meets TAPPI standard TIS 405-8 and MSS-SP-81 – standard with manual hand wheel or pneumatic/hydraulic cylinder or electric motor.
Series 4000 (Automated – Stainless Steel/Carbon Steel Knife Gate Valve)
The heavy duty stainless steel (or carbon steel) pneumatic/hydraulic actuated knife gate valve is an ideal solution for mining, power, pulp/paper, waster water and chemical industries. UHMW, PTFE Polypropylene liner and seat provide bi-directional tight shut-off. Stainless steel gate and stem are corrosion resistant and made for valve durability. Special allows and coatings are available by request. Our superior packing arrangement provides drastically better sealing and performance in high cycle applications.

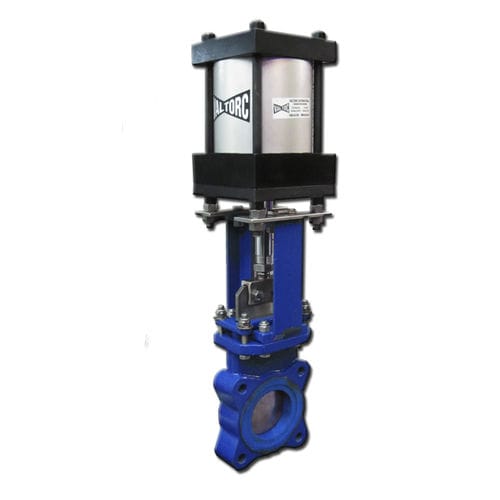

Air Actuated Knife Gate Valve
•Available sizes 2″ – 24″
•Heavy duty stainless steel (304 or 316) or carbon steel body
•ANSI B16.5 class 150 or 300# flanged dimensions.
•Three piece field replaceable seat and valve liner
•Available in standard pressure rating of 150 or 300PSI (higher pressure ratings and custom designs are also available upon request)
•MSS-SP81 face to face and flange dimensions
•Full port inside diameter in all sizes – custom sizes and designs are available upon request
توضیحات:
Type
knife gate
Operation
pneumatically-operated, hydraulically-operated
Function
shut-off
Material$
stainless steel, carbon steel
Other characteristics
high-pressure, bidirectional, corrosion-resistant, actuated, heavy-duty
DN
Min.: 3 inMax.: 24 in
Pressure
150 psi, 300 psi
