نام محصول:
دریچه خاموش
نام انگلیسی:
Shut-off valve
برند:
MEDENUS Gas- Druckregeltechnik GmbH
مشخصات:

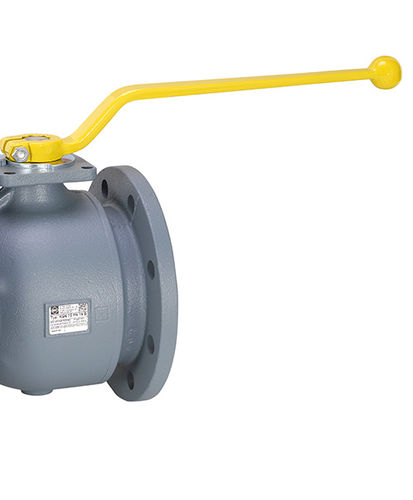

Our flanged ball valves consist of a two-piece nodular cast iron body and are in fire-safe design. The floating ball inside the body, which is chambered on three sides, is adjusted with the handle. Optionally, the handle can be replaced by an electric or pneumatic rotary actuator.
Gas ball valves are mainly used to shut off the gas flow in gas trains or gas installations before and after other equipment like gas pressure regulators, gas meters etc.
These ball valves are suitable for all gases according to DVGW G260 / G262 and all other non aggessiven gases (others upon request). They are certified according to DVGW, DIN EN 13774, PED, GAD, CE.
Key Features
• The ball valves are made in two pieces “Screwed” and “full port” design. Body material spheroidal graphite cast iron
• fire safe design
• TA-Luft certified
• floating ball, free of silicone
• face to face length according to DIN558-1 line 14
• grounding 1K water based varnish (other paintings upon request)
توضیحات:
Type
floating ball
Operation
lever
Function
shut-off
Media
for gas, for air, for steam, for compressed air, for natural gas, for CO2, for inert gases, propane, for LNG
Body
flange, 2-piece, cast iron
Applications
for the chemical industry, for industrial applications, for tank, for bulk materials, industrial, for the food industry, process, for vacuum, for the gas industry, for pipelines, for burners, for HVAC installations, for heating systems, for the petroleum industry, for ventilation systems, for compressors, HVAC, for gas turbines, refinery, blower, for pipework, for boiler, for pipes
Associated function
exhaust
Other characteristics
standard, ISO, DIN, compact, high-pressure, with connection, with lockable toggle, springless, wear-resistant, full-flow, high-flow, top-mounted, normally closed, bidirectional, rugged, low-pressure, for nitrogen, locking, high-performance, for low flow rates, single-acting, pressure seal, fire-safe
DN
Min.: 25 mm(0.984 in)Max.: 200 mm(7.874 in)
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 60 °C(140 °F)
Flow rate
Min.: 0 m³/h(0 ft³/h)Max.: 20,000 m³/h(706,293.33 ft³/h)
