نام محصول:
دریچه خاموش
نام انگلیسی:

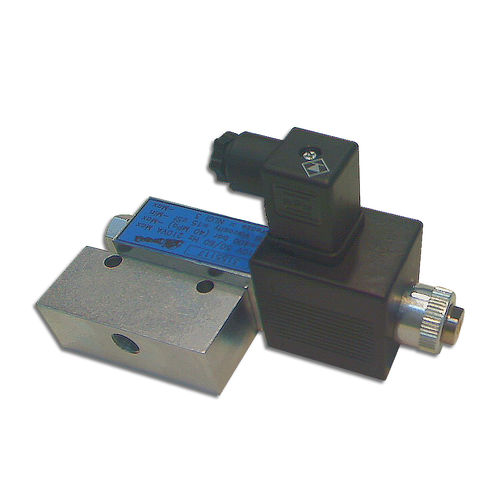

Shut-off valve 31551 series
برند:
Dropsa spa
مشخصات:
These valves are similar to “SHUT OFF” valves for SMX metering element. The difference is that are not connected to metering elements but mounted directly on the feed to create different sections or zones of the system.
The valves can be either: electrico and Pneumatic.
Key features:
Lubricant: Oil (min.15 cSt) – Grease max NLGI 3 at operating temperature
Temperature: -10°C ÷+100°C ( 14 to 212° F)
Voltage: 24V dc, 110V ac 50/60Hz, 220V ac 50/60Hz
Power absorbed: 43 Watt( dc) 8 VA ( ac)
Protection degree: IP65 ( connections) – IP54 (coil)
Air driven pressure: Min 3bar – Max 5 bar
Lubricant Inlet: Rp 1/4 UNI-ISO 7/1 (BSP)
Lubricant Outlet: Rp 1/4 _UNI-ISO 7/1 (BSP)
توضیحات:
Operation
pneumatic
Function
shut-off, metering
Media
for oil
Body$
IP65, IP54
Other characteristics
grease
Pressure
Min.: 3 bar(43.5 psi)Max.: 5 bar(72.5 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 100 °C(212 °F)
