نام محصول:
دریچه جبران فشار
نام انگلیسی:

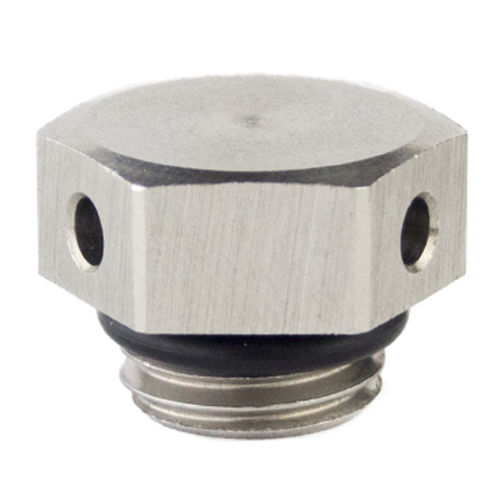

Pressure-compensated valve JCT13
برند:
Berardi Bullonerie srl
مشخصات:
Pressure check valve, metric thread stainless steel
• Material
Body: AISI303 (Stainless steel)
Diaphragm: PES (Polyethersulfone)
O-ring: NBR (Nitrile rubber)
• Protection grade:
IP66
IP68 – 0,6 bar (60 min)
IP69
• Air passage: > 400 ml / min / cm2 a ∆p = 0,07 bar
• Water passage: ≥ 0,83 bar (30 sec)
• Operating temperature: -40°C ÷ 100°C
• Use: Protection for electro-technical and electronic enclosures against condensation due to temperature and pressure variations.
Ventilation and continuous adaptation to the internal pressure.The venting element does not work if blocked by dust or submerged in water.
توضیحات:
Type
diaphragm
Operation
manual
Body
threaded, IP68, stainless steel
Applications
for HVAC installations
Other characteristics
pressure-compensated
Pressure
0.1 bar(1.5 psi)
Temperature
Max.: 100 °C(212 °F)Min.: -40 °C(-40 °F)
