نام محصول:
دریچه توپ شناور

نام انگلیسی:
Floating ball valve Q41F

برند:
Vatac Valves (Wenzhou) Corporation

مشخصات:
Floating DBB Ball Valve

Quick Details:

Model NO.: Q41F

Type: Floating Ball Valve

Function: Blow-Down Valve

Temperature: Normal Temperature

Application: Industrial Usage, Water Industrial Usage, Household Usage

Characteristic: Dbb Ball Valve

Design & Manufacture: API 6D, Asme B16.34 & BS5351

Pre-Temp. Rating: Asme B16.34

Face to Face: Asme B16.10

Ends Connection: RF, Rtj, Bw

Inspect & Test: API 598

Certificate 1: Dnv CE 0575

Certificate 2: ISO 9001: 2008

Trademark: VATAC/OEM

Transport Package: Sea Worthy

Specification: API, ANSI, ASME, DIN, JIS etc.

Origin: China

HS Code: 84818010

Product Description:

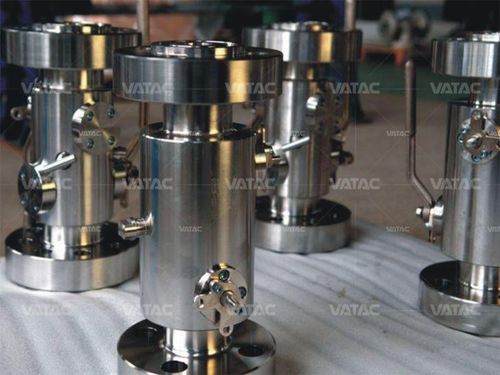

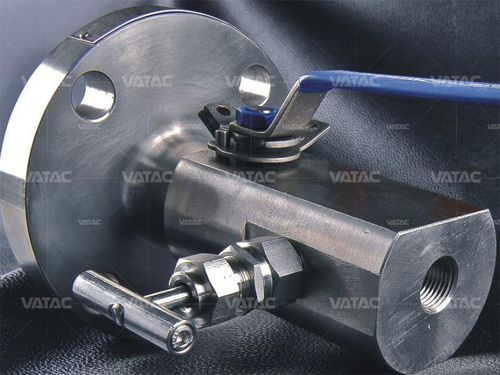

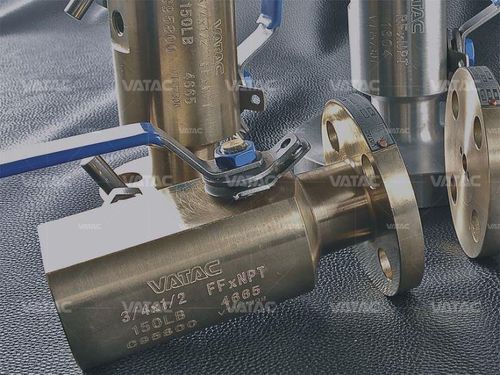

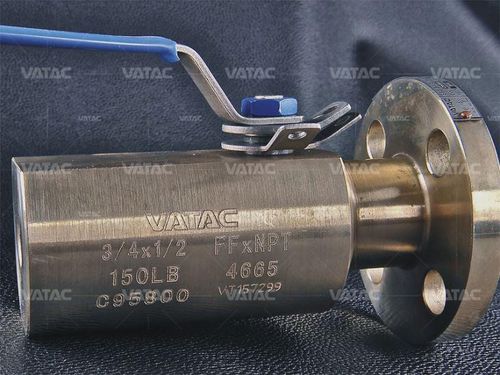

The floating DBB ball valve is designed to replace the complex interlocking of multiple valves in conventional piping, reduce leakage points in the system, and enable rapid discharge and shutdown.

Features:

1) Double blockage double discharge saves installation space, simplifies installation and reduces pressure piping.

2) The floating DBB ball valve is easy to clean and maintain, reducing costs.

3) The inner diameter of the full diameter valve is consistent with the inner diameter of the pipe. It not only reduces the fluid resistance, but also facilitates the cleaning of the pipe.

Applications:

Floating DBB ball valve is suitable for oil and gas production, processing, transportation, distribution, chemical and petrochemical refining valves, including system isolation, pressure level and flow measurement, instrument discharge, chemical injection and smaller size sampling.

توضیحات:
Type
floating ball

Operation
manual

Function
sampling, isolation, distribution

Media
for oil

Applications
industrial

Associated function
injection
