نام محصول:
دریچه توپ شناور
نام انگلیسی:

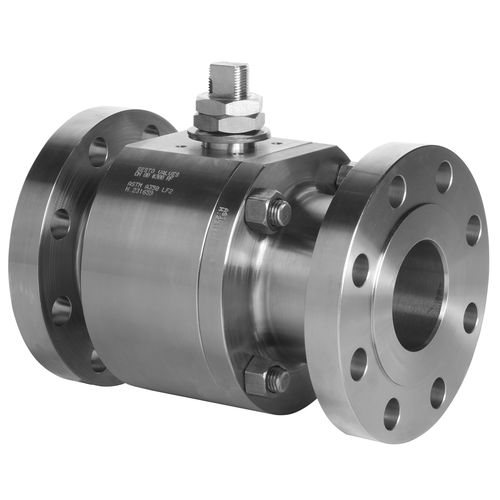

Floating ball valve
برند:
Sesto Valves srl
مشخصات:
FEATURES & BENEFITS
Class 150 to Class 2500
Size Range ¼” thru 10” (Class Dependent)
Full and Reduced Bore
Body Wall Thickness ASME B16.34, Forged or Cast Versions
End Connections: SW, BW, RF, RTJ, NPT, BSP, Special
Fire-Safe Design API 607
Blowout Proof, Low Torque Guided Stem Design
Anti-Static Device and Live-Loaded Packing
Fugitive Emissions ISO 15848
Wide Range of Soft Seat and Metal Seat Options
Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
Custom Face-to-Face Lengths Available per Customer Requirement
توضیحات:
Type
floating ball
Operation
manual, electric, pneumatically-operated
Function
distribution
Media
for oil, for gas
Body$
flange
Applications
for industrial applications, cryogenic
Material$
metal
Other characteristics
high-pressure, high-temperature, anti-static, fire-safe
DN
Min.: 15 mm(0.591 in)Max.: 150 mm(5.906 in)
