نام محصول:
دریچه توپ شناور

نام انگلیسی:

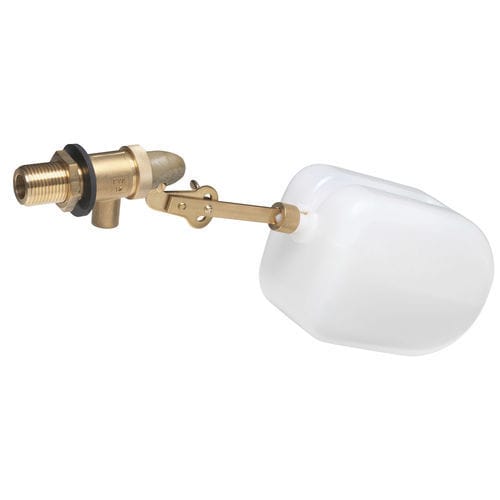

Floating ball valve 8G8

برند:
PVA PSchwimmerventile GmbH

مشخصات:
PEKI float valve series made of high quality hot pressed parts and precision turned parts, assembled with modern injection moulded parts and sealing elements made in Germany . Compact design with high filling capacity manufactured in brass, chem nickel-plated and stainless steel.

The PEKI series “big” bore addresses the need of many users for more fl ow. The models are designed with 7,8 and 12 mm valve seat bores, which are commonly found in “and 1” valves. This allows a high filling capacity in a compact design.

توضیحات:
Type
floating ball

Operation
float

Media
for water

Body
threaded, stainless steel, brass, nickel-plated

Associated function
filling

Other characteristics
compact, with seal

DN
0.375 in

Pressure
Max.: 8 bar(116 psi)Min.: 0 bar(0 psi)

Temperature
Max.: 100 °C(212 °F)Min.: 0 °C(32 °F)

Flow rate
16 l/min, 30 l/min(4.23 us gal/min, 7.93 us gal/min)
