نام محصول:
دریچه توپ شناور
نام انگلیسی:

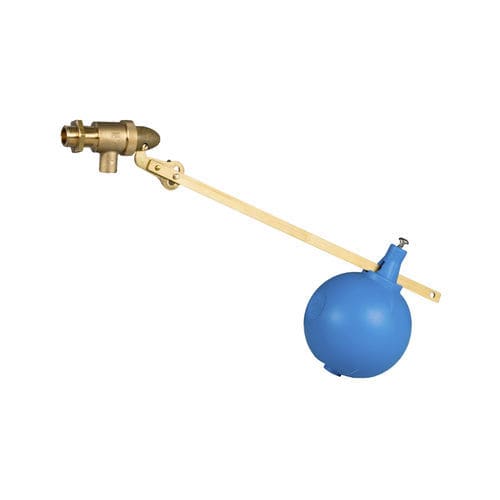

Floating ball valve 8A
برند:
PVA PSchwimmerventile GmbH
مشخصات:
Our mechanical PEKI valve series has been manufactured for decades from high-quality hot pressed parts and precision turned parts, which are assembled with modern injection moulded parts and sealing elements from German production. PEKI valves can be manufactured according to customer requirements in construction length, material of the seal as well as in chemical nickel plating.
The PEKI Classic model 8A was originally developed as a refi ll valve for high-hanging cisterns and for pressure compensation tanks. Easier installation, stepless adjustment of the fi ll level, secured functionality, low wear and long service life are the main features of our PEKI brass valves.
توضیحات:
Type
floating ball
Operation
float
Media
for water
Applications
for industrial applications, for storage tanks
Material$
nickel-plated brass
Associated function
filling
Other characteristics
with seal
DN
0.375 in, 0.5 in
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 100 °C(212 °F)
Flow rate
8 l/min(2.11 us gal/min)
