نام محصول:
دریچه توپ شناور
نام انگلیسی:

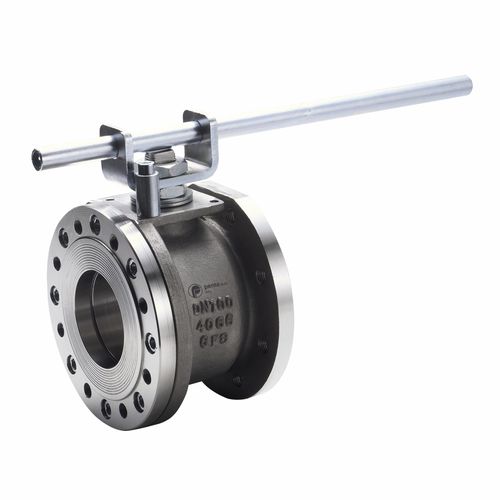

Floating ball valve AP10
برند:
Penta Srl
مشخصات:
Metal seated Wafer Ball Valve construction with floating ball for high temperature services. There are three valve models:
● For low pressure services (AP10)
● For high pressure services (AP10HP)
● Ball valve with heating jacket (AP11)
Each model can be provided as one direction or bidirectional.
The possibility to equip the valve with heating jacket let us extend the range of application also to services with fluids that becoming solid to ambient temperature.
Wafer ball valve construction can be provided with a 100mm stem extension (or higher, on demand). Live Loaded Design stem packing is provide.
توضیحات:
Type
floating ball
Operation
lever, pneumatic
Function
flow control, blanketing
Media
for oil, for chemical products, for fuel
Body
wafer, stainless steel, carbon steel
Applications
for industrial applications, for the chemical industry, process, for the petroleum industry, for boiler
Number of channels
2-channel
Other characteristics
ANSI, bidirectional, high-temperature, unidirectional
DN
Max.: 6 inMin.: 0.5 in
Pressure
Max.: 160 bar(2,320.6 psi)Min.: 10 bar(145 psi)
Temperature
Max.: 400 °C(752 °F)Min.: -46 °C(-51 °F)
