نام محصول:
دریچه توپ شناور

نام انگلیسی:

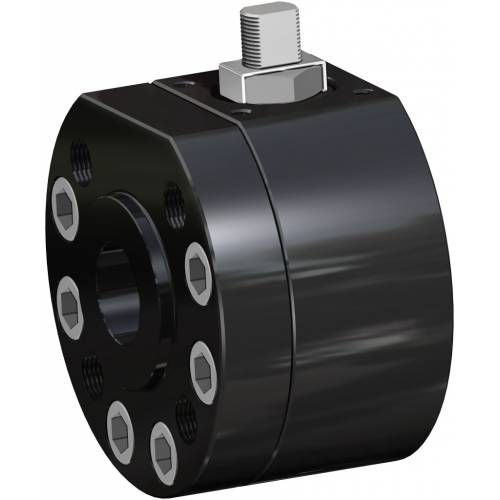

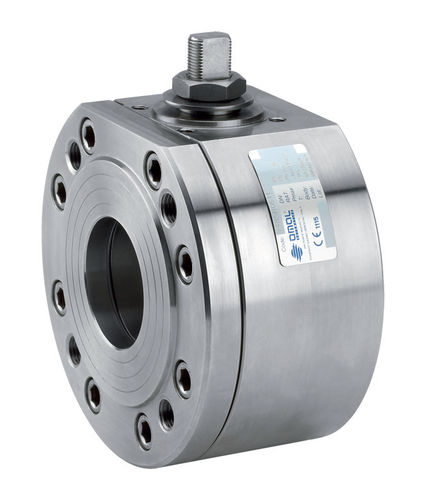

Floating ball valve Magnum

برند:
OMAL Spa

مشخصات:
Category Magnum

Subcategory Magnum Split Wafer

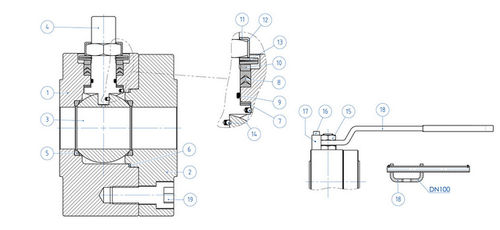

1. Antistatic device ((electrical continuity between ball, stem and body)

Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment

Contact safety throughout the entire life of the valve

2. Double antifriction washer

Less Breakaway Torque is granted

Less wear comparing with the execution with the single washer

3.”V” seals pack; 3 seals + o-ring

It ensures a perfect tightness even after a high number of cycles

4. Spring washer on the shaft seal

Guarantee of the recovery of the gap due to the wear caused by the rotational movement of the shaft avoiding leakage towards the outside part.

Allow to maintain energized the “chevron” seals (V), thus avoiding any leakage to the outside, against huge temperature excursions

5. Stretch Graphite seal

Tightness towards outside is granted, independently by the thermal excursions to which the valve is subjected

Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve

Longer lifetime of the valve

Less breakaway torque

Valve body in carbon steel made with NACE certified material as standard

Greater corrosion resistance

Greater ductility of the material

100% in- house manufacturing process technology

Maximum control and accuracy in all the stages of the manufacturing process

Flexibility in supply quickly special executions requested by customers

توضیحات:
Type
floating ball

Operation
lever

Function
regulating

Media
for steam

Body$
wafer

Applications
process, industrial, for the chemical industry, for the food industry, for automobiles, for oil industry applications, turbine, for the pharmaceutical industry, for the gas industry, for the paper industry, for shipbuilding, power line, for water treatment, for the mining industry, for marine applications, for machine tools

Material$
carbon steel

Other characteristics
thermal

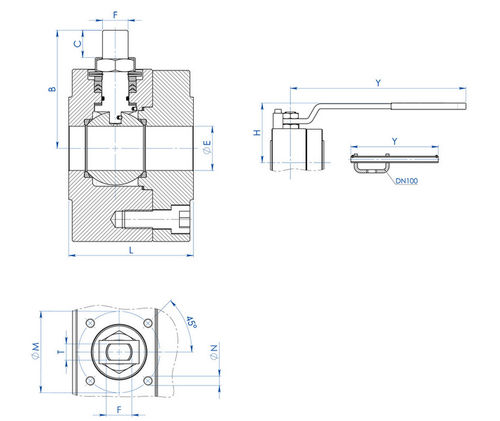

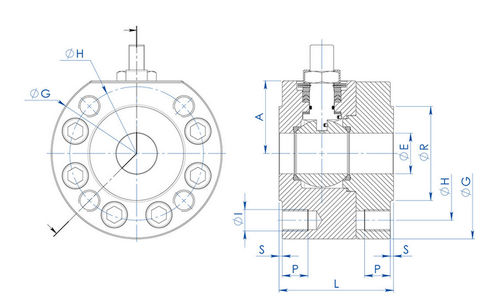

DN
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)

Pressure
Min.: 63 bar(913.7 psi)Max.: 100 bar(1,450.4 psi)

Temperature
Min.: -40 °C(-40 °F)Max.: 200 °C(392 °F)
