نام محصول:
دریچه توپ شناور
نام انگلیسی:

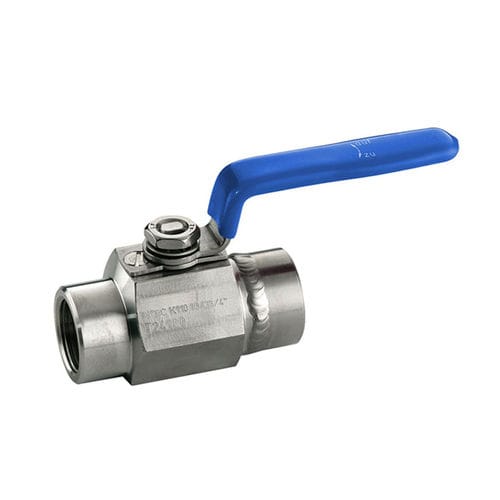

Floating ball valve K110
برند:
KLINGER-SCHÖNEBERG GmbH
مشخصات:
INTEC K110
Mini plant ball valve with female threaded ends.
Features
DN 8 – DN 20
one-piece ball valve
soft seated
floating ball
FTF dimensions acc. to DIN 3202 part 4-M3
thread connection
female threades ends acc. to EN ISO 228-1, G 1/4″ up to G1″
The high pressure series for all laboratory and miniplant applications for process industries. The series is available from threaded end to clamping ring connection. All variations are used for laboratory and also in control applications. A benefit for this series is also the smart possibility for automation. Certified acc. to German clean air act VDI 2440!
Product Advantages
Compact design
One piece body reduces fugitive emissions
Best suited for automation
Wide range of accessories
Accessories
Heating jacket
Hand lever with bayonet locking
Hand lever extension
Block unit – padlock unit
Spring close unit – automatical return lever (“dead man handle”)
Special Designs
Special materials like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc.
PEEK seated
Special connections on request
توضیحات:
Type
floating ball
Operation
lever
Function
for control
Body$
threaded, female
Applications
process, heating, laboratory, for automation
Material$
PEEK, titanium, stainless steel, nickel
Other characteristics
compact, ISO
DN
Min.: 8 mm(0.315 in)Max.: 20 mm(0.787 in)
Pressure
100 bar, 160 bar(1,450.4 psi, 2,320.6 psi)
Temperature
Min.: -50 °C(-58 °F)Max.: 225 °C(437 °F)
