نام محصول:

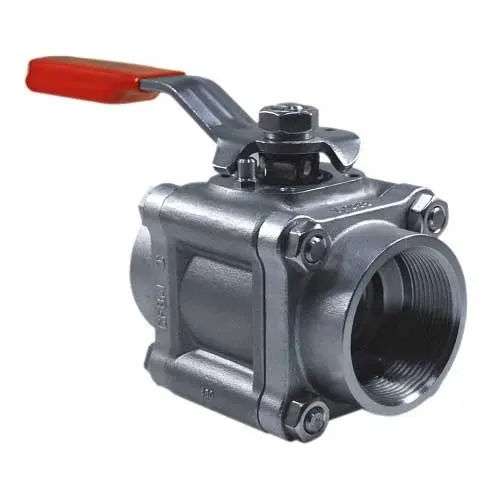

دریچه توپ شناور
نام انگلیسی:
Floating ball valve
برند:
FLOWSERVE
مشخصات:
A range of 3-piece ball valves designed for ASME B.16.34, General Purpose and specific application requirements combined with seat and seal combinations provide customers with reliability and long service life over a broad pressure range
Special build configurations to meet customers application
Bubble tight shutoff with bi-directional flow provides process flexibility
Low operating torques allowing for compact actuator operation reducing space and cost requirements
Fast, easy and inexpensive maintenance facilitated by compact, slipout body design with seat and body seal accessability
ASME B.16.34
API 607 FireSafe
ISO 15848 Emissions
PED Directive 97/23/EC
ATEX Directive 94/9/EC
CE Mark
FM Approval
Power
Biomass & MSW
Combined Cycle
Concentrated Solar Power (CSP)
Conventional Steam
Geothermal
توضیحات:
Type
floating ball
Operation
lever
Function
for control, diverter
Media
for water, for chemical products, for fuel, for steam
Body
threaded, seat, 3-piece, stainless steel, carbon steel, brass
Applications
for oil industry applications, for the chemical industry, for the food industry, for the pharmaceutical industry, for the gas industry, for the paper industry, for water treatment, cryogenic, beverage, for the mining industry, irrigation
Other characteristics
ISO, compact, high-pressure, fire-safe, ATEX
DN
Min.: 15 mm(0.591 in)Max.: 150 mm(5.906 in)
Pressure
100 bar(1,450.4 psi)
Temperature
Min.: -196 °C(-321 °F)Max.: 300 °C(572 °F)
