نام محصول:
دریچه توپ شناور
نام انگلیسی:

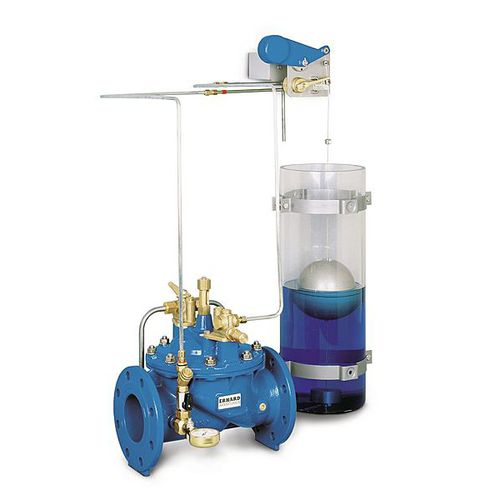

Floating ball valve SVP4
برند:
ERHARD
مشخصات:
DN 50 – 600
PN 10 – 16
Body: EN-JS1040, EN-JS1050
Coating: Epoxy
For level control of drinking water in water supply and distribution systems.
Operationally reliable control via operating medium
Practice-orientated, large water level adjustment range (50-4000 mm)
Seat outside the cavitation zone
Insensitive to cavitation due to simple open/shut valve
All internal parts accessible from above, maintenance of the control unit without stopping the main valve
Adjustable closing rate for low surge operation
توضیحات:
Type
floating ball
Function
level control
Media
for water
DN
Min.: 50 mm(1.969 in)Max.: 600 mm(23.622 in)
Pressure
Min.: 10 bar(145 psi)Max.: 16 bar(232.1 psi)
