نام محصول:
دریچه توپ شناور

نام انگلیسی:
Floating ball valve B1 series

برند:
Brandoni

مشخصات:
Series B1 consists of wafer-ball-type shut-off valves, with the body in cast iron and a floating ball, manufactured in accordance with the severe product standards and the quality management of ISO 9001. Suitable for heating and conditioning (HVAC), district heating, distribution and water treatment, industrial applications, agricultural applications, for compressed air processing, for fire fighting, for oils and hydrocarbons. (Please ensure the choice of the corresponding item)

YES: for installation in-line and end of line, for services with frequent acting, the integrated ISO 5211 support allows the installation of a wide range of actuators .

The B1 wafer ball valves are full and straight bore reducing turbulences and minimizing head loss.

NO: for steam, for choking and flow regulation.

Accessories

Stem extension for thermal insulation
Square cap for water main system connection
Extension for water main system connection
Kit for lockable operation lever
Kit for limit switches for ON/OFF position indicator
Kit for ISO flanges Actuators

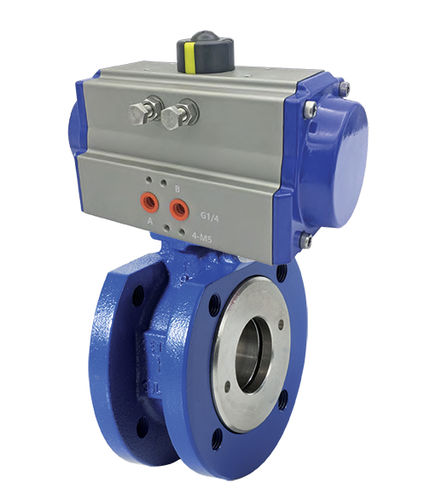

Double acting and single acting pneumatic actuators
On request: limit switches, position indicator
Electric actuators
Gear boxes

توضیحات:
Type
floating ball

Operation
lever, with handwheel, pneumatic, electric

Function
shut-off, distribution

Media
for water, for oil, for fuel, for compressed air

Body$
wafer, lockable, in-line

Applications
industrial, for heating, HVAC

Material$
cast iron

Other characteristics
ISO

DN
Min.: 20 mm(0.787 in)Max.: 100 mm(3.937 in)

Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)

Temperature
Min.: -10 °C(14 °F)Max.: 150 °C(302 °F)
