نام محصول:

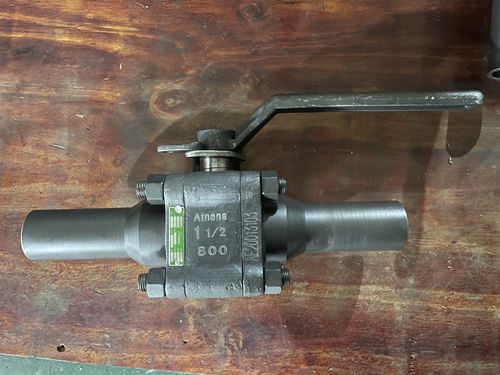

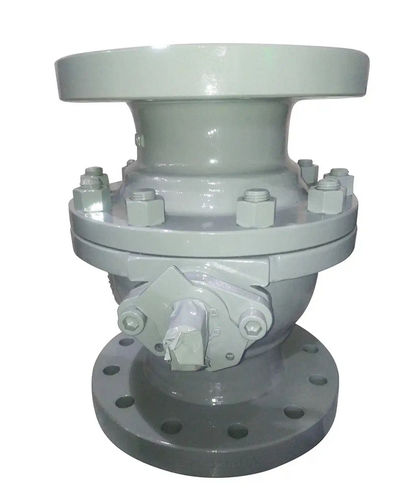

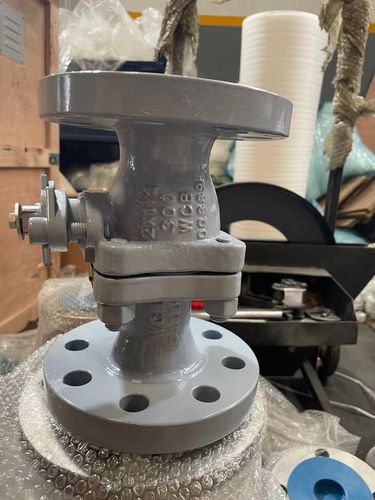

دریچه توپ شناور
نام انگلیسی:

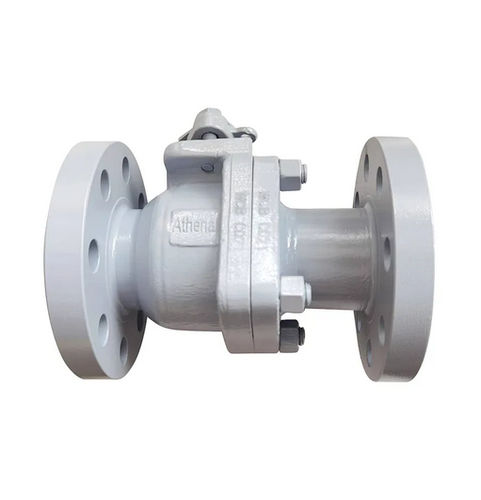

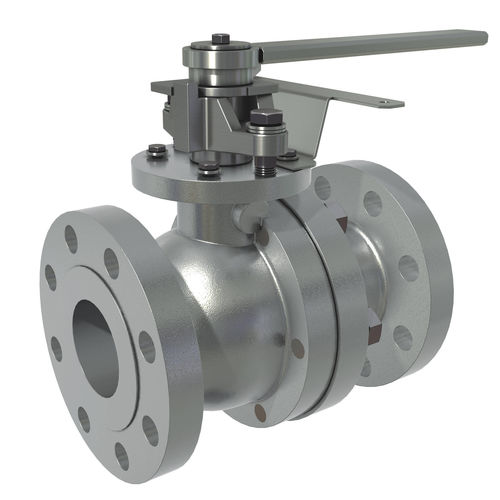

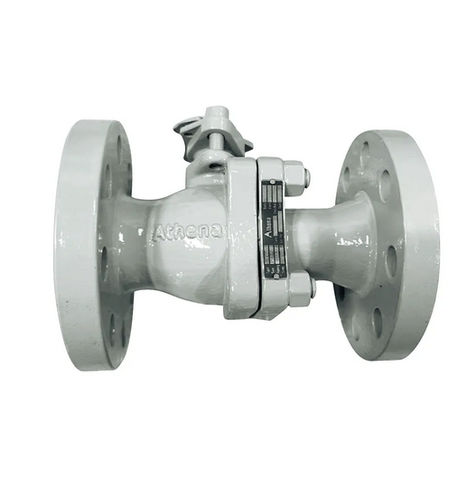

Floating ball valve
برند:
Athena Engineering S.r.l.
مشخصات:
– Mainly designed for low-pressure services with a flexible temperature range.
– Provides a wide variety of this series of ball valves manufactured to API, ASME, DIN And JIS standards.
– Usually furnished with flanged end connection.
– Due to the low-pressure ratings and small sizes, the torque t o open or close the valve is not big hence manual operation(either lever or gear) is applied.
– Generally, cast steel ball valve is mainly used for on-off applications as well as minor throttling purposes.
API 6d defines the requirements for the design, manufacturing, assembly, testing, and documentation of ball, check, gate, and plug valves for application in pipeline and piping systems for the petroleum and natural gas industries. Athena ball valve matches the API 6D standard, which promises quality.
Athena manufacture valves from genuine guaranteed raw material with material test certificate, hydraulic test certificates, MTC 3.1 available with all supply. Also, we can provide valves with third party inspection agencies.
توضیحات:
Type
floating ball
Operation
lever, pneumatic
Function
shut-off
Media
for water, for oil, for chemical products, for fuel
Body$
double-flange, soft-seat, 3-piece
Applications
for pipelines, for the petroleum industry, for heating, for the paper industry, cryogenic, for the mining industry, refinery, for boiler, power line
Material$
steel, alloy, stainless steel, cast steel
Number of channels
2-way
Fluid specification
for aggressive media, for corrosive fluids, for hazardous fluids, for fluids with lubricating properties, for toxic fluids
Associated function
reducing, transfer, feed
Other characteristics
ISO, standard, DIN, full-flow, anti-static, low-pressure, motor-driven, fire-safe, ATEX
DN
Min.: 0.5 inMax.: 10 in
Temperature
Min.: -29 °C(-20 °F)Max.: 120 °C(248 °F)
