نام محصول:
دریچه تنفس مخزن
نام انگلیسی:

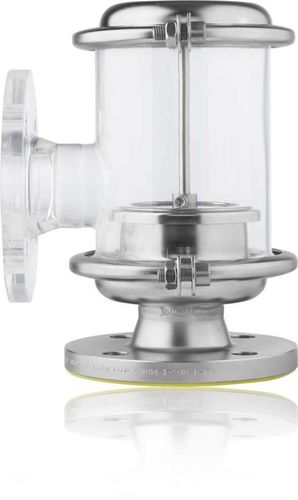

Tank breather valve ELEVENT®
برند:
REMBE® GmbH Safety+Control
مشخصات:
Vessels and tanks with minimal design pressures are effectively protected against the lowest overpressure and vacuum with ELEVENT® breather valves. They reliably prevent the escape of gases, environmentally harmful substances or explosive mixtures as well as the ingress of air. A constant controlled tank pressure level is assured. The extraordinarily light and compact design is achieved with a deep-drawn stainless steel or metal housing. The clamp connections result in a modular design with interchangeable components. Maintenance can be carried out quickly and easily. The trend-setting valve concept with deep-drawn housing parts offers a flexible design of the connections, i.e. an exact adaptation of the valve to all system specifications. Connection variants with ANSI flanges, Tri-Clamp and pipe fittings according to DIN 11851 as well as CF and KF flanges are available on request.
ELEVENT® is used in the oil and gas industries, food processing, the chemical and pharmaceutical sectors and power plant technology. The optimised “air cushion” sealing principle provides a smooth valve stroke and an extremely reliable leak-tight seal. This prevents abrasion and valve chatter. The metal housing is made from deep-drawn stainless steel.
Advantages
• Nominal diameters DN 25 to DN 200.
• Lowest response pressures from 2 mbar to 200 mbar, depending on the nominal diameter.
• Quick and easy inspection and maintenance through clamp connections.
• Seals and weights can be replaced on site.
• Modular design (interchangeable elements).
• Light and compact design.
• Extreme stability with low weight.
• Optimised sealing technology.
• HALAR and PFA coating*.
توضیحات:
Applications
for tanks, low-pressure, for vacuum
Other characteristics
flange
Controlled pressure
Max.: 200 mbar(2.9 psi)Min.: 2 mbar(0 psi)
DN
Max.: 200 mm(7.874 in)Min.: 25 mm(0.984 in)
Pressure
Max.: 200 mbar(2.9 psi)Min.: 2 mbar(0 psi)
