نام محصول:
دریچه تنظیم
نام انگلیسی:
Adjustment valve 040110
برند:
VUOTOTECNICA
مشخصات:

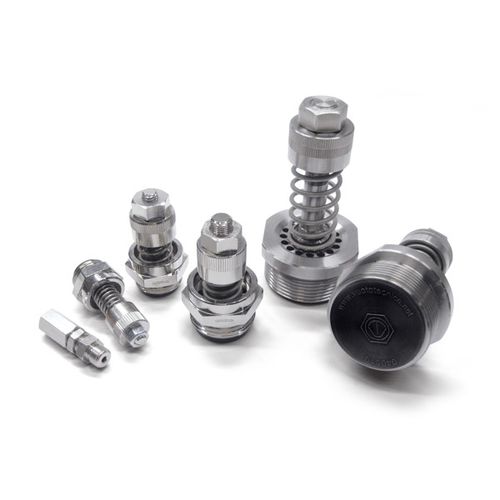

Vacuum adjustment valves
When these valves reach a certain pre-calibrated vacuum degree, they introduce atmospheric air into the circuit to prevent the increase of the set value and to keep it constant.
They can be used as regulators only on circuits having only one vacuum pump and only one use (or more uses but all working at the same vacuum degree).
In most cases, they are used as safety valves on non-commissioned tanks or containers at high levels of vacuum and on vacuum cup lifting systems.
The level of vacuum is adjusted by rotating the knurled bush in both directions. The fine thread with which the valve is provided ensures a very accurate calibration. The temperature values within which the valves can operate go from -20 °C to +120 °C.
توضیحات:
Function
adjustment
Body$
threaded
Applications
for vacuum
Material$
nickel-plated brass, stainless steel
Associated function
calibration
DN
Min.: 0.125 inMax.: 1.5 in
Pressure
Min.: 1 mbar(0 psi)Max.: 670 mbar(9.7 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 120 °C(248 °F)
Flow rate
Min.: 4 m³/h(141.26 ft³/h)Max.: 250 m³/h(8,828.67 ft³/h)
