نام محصول:
دریچه تنظیم کننده
نام انگلیسی:
Regulating valve 50D01
برند:
SuZhou KoSa Environmental Protection CO.,LTD
مشخصات:

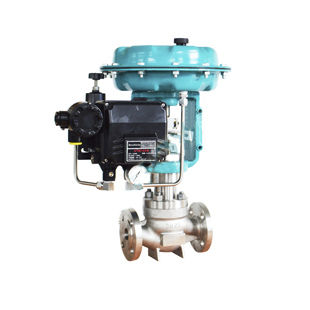

The 810D Series cage single-seat control valve adopts the top guided unbalanced structure, featured by high strength, heavy load, S type flow channel, low pressure drop loss, high flow coefficient, wide adjustable range, high flow characteristic precision, etc. Featured by tight shut-off, this kind of control valve is suitable for applications with relatively low differential pressure. It is suitable for controlling medium flow or pressure.
The cage adopts the press-in type seat design, which solves the problems of difficult disassembly and high leakage of the traditional thread screw-in type seat and prolongs the service life. The flow to open design is adopted, and the medium flow direction tends to the opening direction of the valve with good controllability of small opening and low flow characteristic distortion. Special cages with noise reduction and anti-cavitation functions can be offered according to the requirements in different service conditions.
توضیحات:
Type
globe
Operation
pneumatically-operated
Function
for control, regulating
Media
for water, for oil, for gas, for steam
Body$
flange, seat
Applications
industrial
Material$
stainless steel, carbon steel
DN
Min.: 15 mm(0.591 in)Max.: 400 mm(15.748 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 640 bar(9,282.4 psi)
Temperature
Min.: -196 °C(-321 °F)Max.: 550 °C(1,022 °F)
