نام محصول:
دریچه تنظیم کننده
نام انگلیسی:

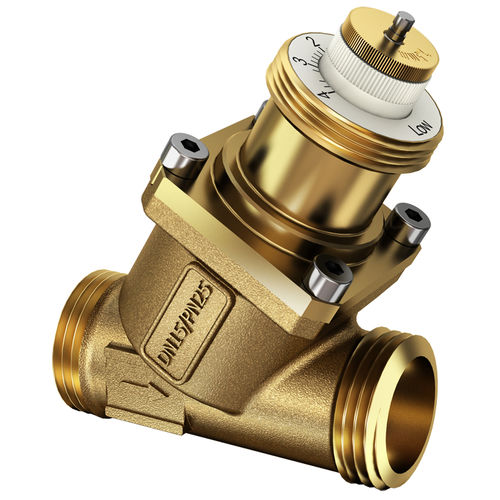

Regulating valve VDL0 series
برند:
Fr. Sauter AG
مشخصات:
How energy efficiency is improved
Automatic dynamic hydronic balancing with the SAUTER Valveco compact regulating valve provides correct supply to the consumers and a reduction of temperature variations in the room, so that the use of energy is more accurate and more efficient.
Features
Regulating valve with three functions: Control, preset maximum volume, automatic flow regulation
Easy to preset the max. required volume flow
Control range 14/15…400 kPa = max. Δp over the valve
Versions with and without pressure measurement nipple
The valve is closed when the spindle is moved in
Closing against the pressure
Slight adaptation of the proven SAUTER actuator technology
Regulating valve with male thread as per DIN/EN ISO 228-1
Flat-sealing regulating valve
Differential pressure across the control unit is kept constant; valve authority 1
Valve body and plug made of dezincification-resistant (DZR) brass
Stainless-steel spindle
توضیحات:
Type
plug
Operation
electric
Function
for control, regulating
Body$
male
Applications
actuator
Material$
stainless steel
Number of channels
2-way
Associated function
balancing
Other characteristics
compact, DIN, automatic, DZR
DN
Min.: 10 mm(0.394 in)Max.: 50 mm(1.969 in)
Pressure
25 bar(362.6 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 120 °C(248 °F)
Flow rate
Min.: 30 l/h(7.93 us gal/h)Max.: 9,500 l/h(2,509.63 us gal/h)
