نام محصول:
دریچه تنظیم کننده
نام انگلیسی:
Regulating valve IR-450-60-R
برند:
BERMAD CS Ltd
مشخصات:

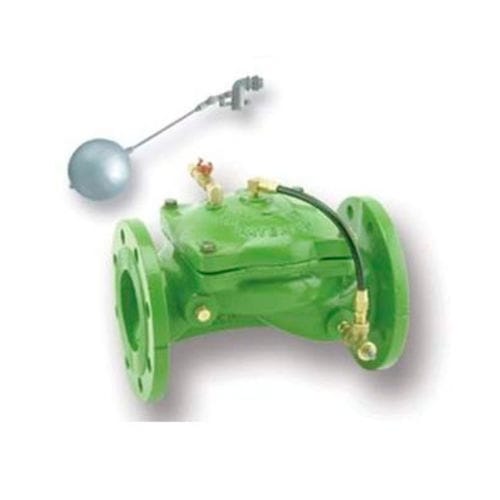

The BERMAD Model IR-450-60-R Level Control Valve with Modulating Horizontal Float is a hydraulically operated, diaphragm actuated control valve. The valve hydraulically controls reservoir filling to maintain constant water level regardless of fluctuating demand.
Product features & benefits
Line Pressure Driven, Hydraulically Controlled
Modulating Hydraulic Float Control
“Always Full” reservoir
Advanced Globe Hydro-Efficient Design
Unobstructed flow path
Single moving part
High flow capacity
Fully Supported & Balanced Diaphragm
Requires low opening and actuation pressure
Excellent low flow regulation performance
Progressively restrains valve closing
Prevents diaphragm distortion
External Installation
Easy access to valve and float
Less wear and tear
Simple in-line inspection and service
Typical Applications
Large Surface Area Reservoirs
Low Volume Reservoirs
Unavailable Power Supply Locations
Fertilizer Mixing Tanks
توضیحات:
Type
globe
Operation
hydraulically-operated, float
Function
mixing, level control, regulating
Media
for water
Body
stainless steel, line
Other characteristics
in-line, actuated, modulating
DN
Min.: 80 mm(3.15 in)Max.: 400 mm(15.748 in)
Pressure
Min.: 0.5 bar(7.3 psi)Max.: 16 bar(232.1 psi)
