نام محصول:
دریچه تنظیم کننده جریان
نام انگلیسی:

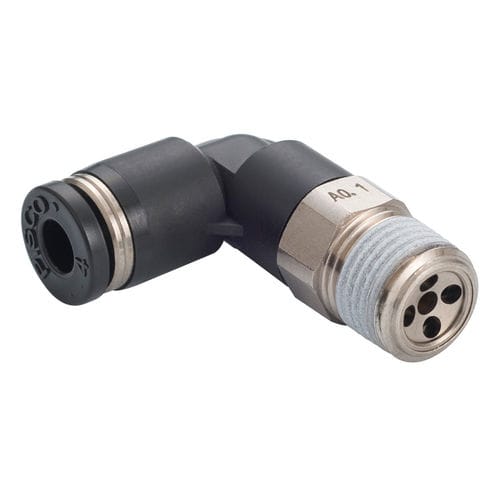

Flow regulator valve JK series
برند:
NIHON PISCO CO., Ltd.
مشخصات:
This speed controller fixes the operation speed of driving device.
It is best suited for use with mass-produced dedicated machines.
Orifice bore φ0.1mm and φ0.2 mm are added.
Orifice bore can be selected from φ0.1mm to φ2 mm, in every 0.1mm.
For price options, please contact our distributor near your office. https://www.pisco.co.jp/en/company/network/
توضیحات:
Type
diaphragm
Operation
manual, pneumatic
Function
flow regulator
Media
for air, for compressed air
Body$
male, straight, right-angle
Applications
for industrial applications, for pneumatic cylinders
Associated function
speed regulator
Other characteristics
compact, push-in, quick-connect
DN
Min.: 4 mm(0.157 in)Max.: 8 mm(0.315 in)
Pressure
Min.: 0.1 MPaMax.: 0.9 MPa
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
