نام محصول:
دریچه تسکین
نام انگلیسی:

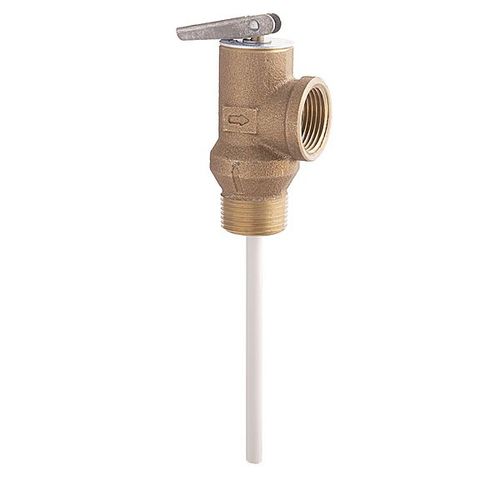

Relief valve 100XL
برند:
Watts Water Technologies
مشخصات:
3/4 in. (20mm)
Description:
Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210°F (99°C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
توضیحات:
Controlled pressure
Max.: 150 psiMin.: 75 psi
DN
20 mm(0.787 in)
