نام محصول:
دریچه تسکین
نام انگلیسی:
Sequence relief valve S-5200
برند:
Airtrol Components Inc
مشخصات:

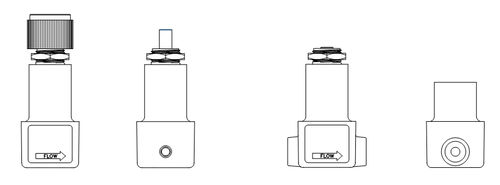

The S-5200 and S-5300 Series are designed for applications requiring precise sequencing of pneumatic control circuits. Sequencing and deadband characteristics can be tuned by varying the output restriction. Adjustments are made through a non-rising stem, available with an attractive knob, plain to allow the insulation of OEM knobs or flush for “back panel” applications.
SPECIFICATIONS
WETTED MATERIALS – Polysulfone, Silicone, Buna-N
TEMPERATURE RANGE – 40° – 150° F (4° – 66° C)
REPEATABILITY – < +/- 1% F.S. (Operating characteristics are influenced by flow and outlet restriction)
توضیحات:
Fluid
air
Other characteristics
pneumatic, sequence, miniature
Controlled pressure
Min.: 0 psiMax.: 100 psi
DN
0.125 in
Flow rate
56 l/min, 65 l/min(14.79 us gal/min, 17.17 us gal/min)
