نام محصول:
دریچه تسکین هوا

نام انگلیسی:

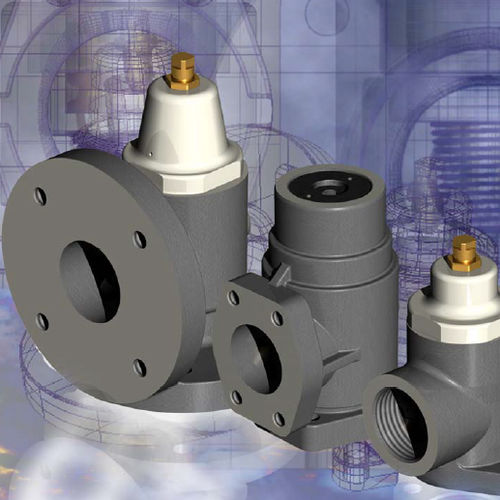

Air relief valve MPV series

برند:
FAI FILTRI

مشخصات:

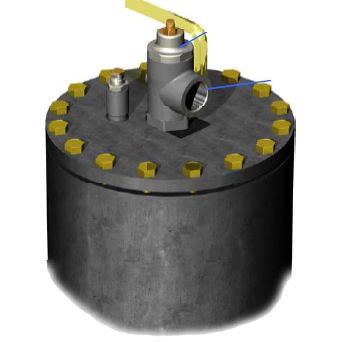

Integrated packages destined for screw or vane compressors, with temperature control functions, oil circuit, oil filtration, air oil separation, minimum pressure and check valve. Available in various sizes, to equip compressors with 3 to 30 Kw of power (flow rates from 0.3 to 4.5 m3/min). Minimum pressure valves which may be calibrated (also available with factory pre-calibration upon request), different grades of thermostatic bulbs.

Pneumatic suction regulators, suitable for regulating rotary screw compressors in the power range from 3 to 30 Kw (flow rates from 0.3 to 4.5 m3/min); regulation in on-load/off- load setting, with depressurization of the separator tank and internal recirculation of air. Also available in the simple “non-return” version (uncontrolled valves).

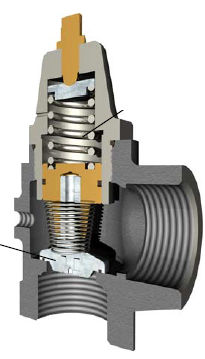

Valves for screw and vane compressors, with minimum pressure and non-return functions. Available for compressors with 2.2 to 132 Kw of power (flow rates from 0.15 to 22 m3/min). Possibility of regulating minimum pressure in the 4-5 bar range and factory pre-calibration upon request. Reduced load loss and continuity of performance over time.

توضیحات:
Fluid
for air

Applications
low-pressure

Other characteristics
pneumatic

Controlled pressure
Min.: 4 bar(58 psi)Max.: 5 bar(72.5 psi)

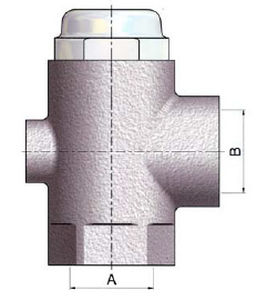

DN
Min.: 40 mm(1.575 in)Max.: 65 mm(2.559 in)

Flow rate
Min.: 1 m³/min(35.31 ft³/min)Max.: 40 m³/min(1,412.59 ft³/min)
