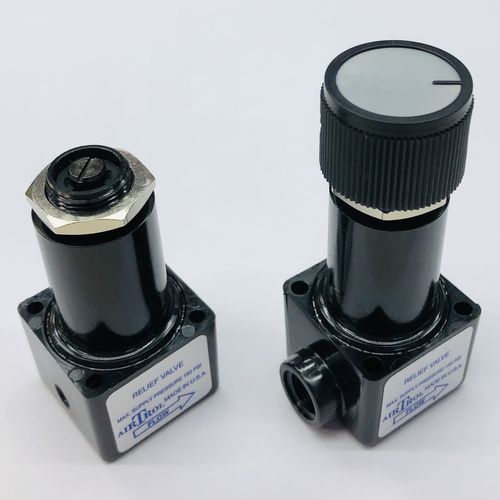

دریچه تسکین مینیاتور – Airtrol Components Inc – Miniature relief valve RV-5200

نام محصول:
دریچه تسکین مینیاتور

نام انگلیسی:
Miniature relief valve RV-5200

برند:
Airtrol Components Inc

مشخصات:
The RV-5200 and RV-5300 Series operate as either a relief valve or low flow back pressure regulators. Adjustments are made through a non-rising stem available with an attractive knob, plain to allow insulation of OEM knobs, or flush for “back panel” applications. A typical application would be the use of a unit between a compressor and a load to prevent the compressor from “loading up” when dead-ended.

SPECIFICATIONS

WETTED MATERIALS – Polysulfone, Silicone, Buna-N

TEMPERATURE RANGE – 40° – 150° F (4° – 66° C)

REPEATABILITY – < +/- 1% F.S. (Operating characteristics are influenced by flow and outlet restriction)

توضیحات:
Fluid
for air, for gas

Connexion
NPT

Applications
low-pressure

Other characteristics
diaphragm, back pressure, miniature

Controlled pressure
Min.: 0 psiMax.: 100 psi

DN
0.125 in

Flow rate
16 l/min, 19 l/min(4.23 us gal/min, 5.02 us gal/min)
