نام محصول:

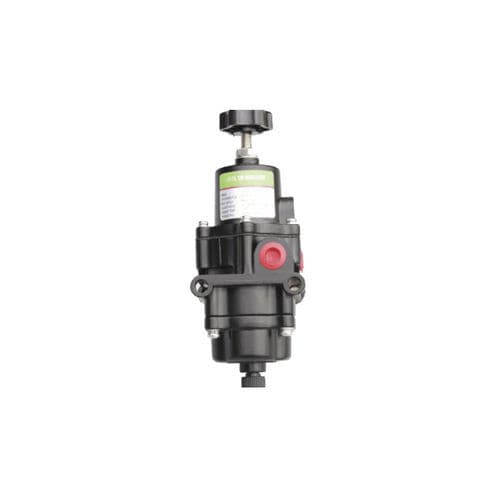

دریچه تسکین فشار هوا فشرده
نام انگلیسی:
Compressed air pressure relief valve
برند:
Hollysys
مشخصات:
Suitable for pressure regulation and filtration of compressed air, and compatible with various valve positioners.
Features
Advanced control principle, high pressure regulation accuracy and superior characteristics
Compact structure and aesthetic appearance
Filtering of tiny solid particles with a minimum diameter of 5 microns and self-cleaning function
Light weight, small size, easy installation and maintenance
Usage at -40° C supported by the low-temperature type
Die casting aluminum (standard) housing, material 316L available, suitable for highly corrosive environment
High output stability, sensitive in response, and always stable output pressure
Multiple air outlets designed to facilitate adjustment of installation direction
Bottom blowdown apparatus, with manual and automatic modes available for selection
توضیحات:
Fluid
compressed air
Applications
regulating
Body material
aluminium
Other characteristics
compact, standard, manual, automatic, aluminum
Controlled pressure
Min.: 0 MPaMax.: 0.6 MPa
Pressure
1 MPa
Weight
0.6 kg(1.32 lb)
