نام محصول:
دریچه تسکین فشار بالا
نام انگلیسی:

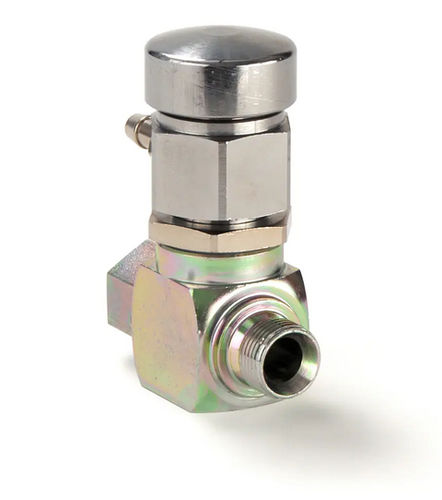

High-pressure relief valve 515
برند:
Parker Quick Coupling Division
مشخصات:
Parker’s Pressure Relief Valve is produced for hydraulic systems where in line quick connect
couplings are used. The system pressure built up between the hydraulic unit and the coupling
would not allow mechanical coupling. The Pressure Relief Valve can be mounted directly in the
main inflow line sothat ail downstream pipe or hose lines where quick connect couplings or
plugs are installed at the ends can be depressurised.
Markets:
– – Agriculture
– – Automotive
– – Oil & Gas
– – Process
– – Power Génération
– – Transportation
– – Vocational & Municipal
– – Defense
– – Industrial
– – Machine Tooling
– – Material Handling
– – Construction
Features/Benefits:
– – Valve to easily depressurize the hydraulic system
– – Easy assembly in existing system thanks to the female/male thread on the block
Applications:
Depressurization of hydraulic systems, both mobile and industrial applications
– – Tractors
توضیحات:
Applications
high-pressure
Body material
steel, brass
Other characteristics
hydraulic, oil
Controlled pressure
Max.: 25,000,000 Pa(3,625.9 psi)Min.: 0 Pa(0 psi)
DN
0.38 in, 0.5 in, 0.75 in, 1 in
