نام محصول:
دریچه تسکین خاموش
نام انگلیسی:

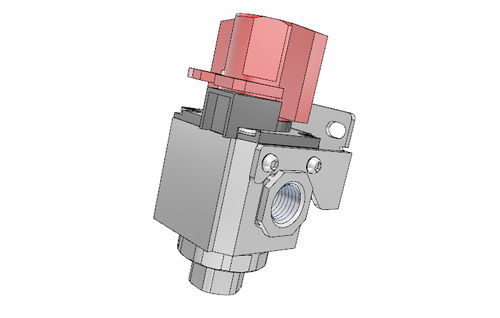

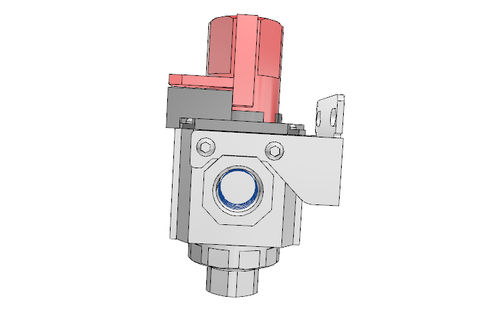

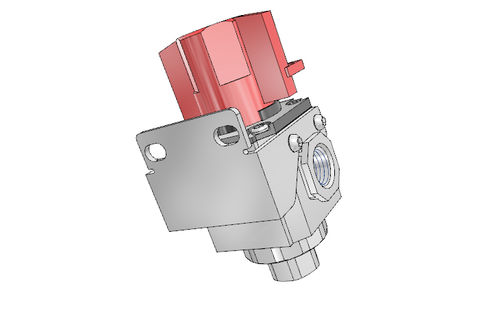

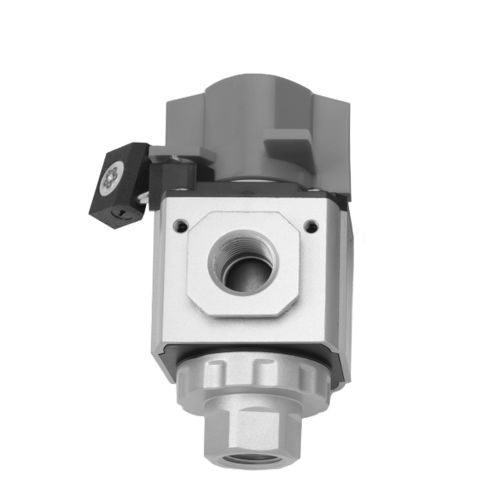

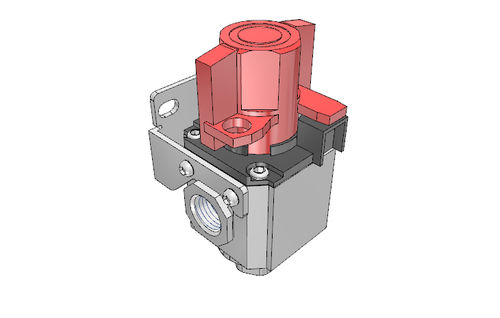

Shut-off relief valve MGZ series
برند:
Bimba
مشخصات:
MGZ series 3-port, 2-position pneumatic shut-off valves cut off upstream pressure and exhaust downstream pressure. The manually rotated knob can be locked out with the included padlock. Available port sizes range from 1/8″ NPT to 1/2″ NPT and a mounting bracket is included for stand-alone operation.
• – Valve type: 3 port, 2-way
• – Temperature: 0°F to 160˚F
• – Operation angle: 90˚ (Twist)
• – All “in stock” valves ship the same day
توضیحات:
Fluid
for air
Connexion
NPT
Body material
aluminium
Other characteristics
pneumatic, 3/2, shut-off
Controlled pressure
Min.: 0 psiMax.: 130 psi
DN
0.13 in, 0.25 in, 0.38 in, 0.5 in
Pressure
215 psi
