نام محصول:
دریچه ترموستاتیک کابل تعادل
نام انگلیسی:
Bowden cable thermostatic valve
برند:
AURORA Konrad G. Schulz GmbH & Co. KG
مشخصات:

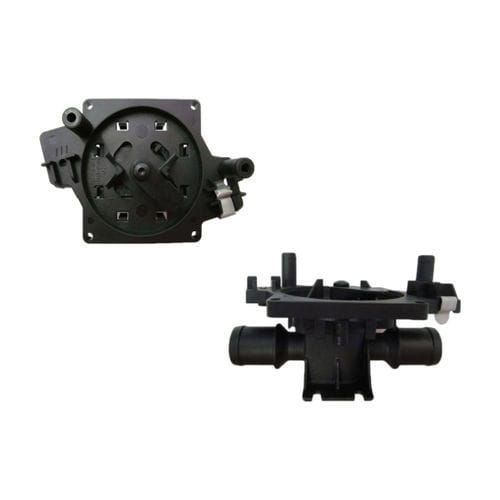

Mechanical Water Valves control the heating performance via easy adjustable Bowden Cables. Standard connection diameters are ø 16 mm / 18 mm / 22 mm / 28 mm. Varied connecting diameters are also available upon request. This water valve has mostly linear operating characteristics, and operates efficiently with a minimum pressure loss.
The valve housing is comprised of Polyamide 66 Material, providing AURORA’s line of water valves with lightweight and non-corrodible qualities.
Specifications
Flow medium: water with antifreeze (mixture ratio max. 1Z19
Volumetric flow: 100-1.200 l/h
Operating temperature range: -40°C to @100°C fluid temp.
Environmental temperature range: -40°C to @85°C
Nominal pressure of liquid:
p S 1 bar relative Test pressure of the water valve: p1 S 2.5 bar absolute
توضیحات:
Technology
temperature control
Applications
for water
Other characteristics
Bowden cable
