نام محصول:
دریچه بهداشتی
نام انگلیسی:
Hygienic valve DKA series
برند:
HOSOKAWA SOLIDS, S.L.
مشخصات:

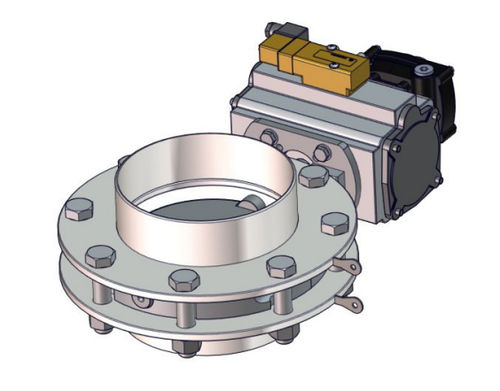

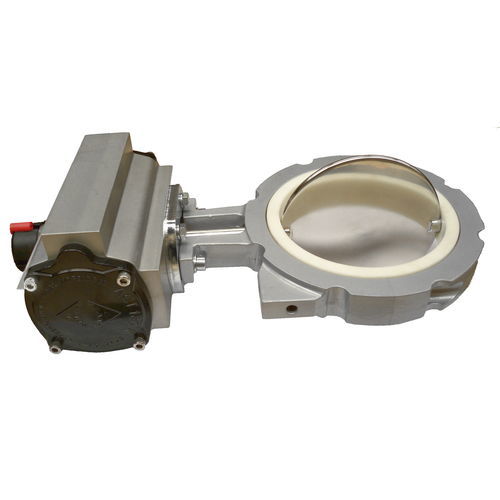

The disc valve is used for dust tight and (as an option) pressure tight locking of a hopper with
bulk solids, or as a locking valve in pipelines for gases.
• Dust-proof, pressure-tight, vacuum-tight locking device
• fulfills EU-Regulation 93/43/EG guideline about foodstuffs hygiene and 2006/42/EG Machinery directive
• fulfills GMP- / FDA-requirements and DIN EN 1672-2
• easy dismantling, easy cleaning by split housing
• TÜV-certified and accredited acc. to pressure equipment directive 2014/68/EU
• Easy, cost-efficient assembling
• Low construction height
• Sealing easy to replace by vertical split housing
This is not an equipment according ATEX-directive 2014/34/EU, but in contact with product (inside) usable in the zones 20-21-22. Additional electrical parts must be approved for the chosen ATEX-zone.
Hygienic design for food, pharmaceutical, cosmetics and chemical industr free of dead zones and free of gaps
Surfaces in contact with the product: Ra < 0,8 µm (steel), weldings inside polished Ra < 0,8 µm, outside Ra < 3,0 µm
According to EU regulations, machinery directive, EHEDG-guidelines and DIN1672-2
توضیحات:
Type
disc
Body
stainless steel
Applications
chemical, for the gas industry, for pipelines, for bulk materials, hygienic, for the pharmaceutical industry, for food, for solids
Other characteristics
DIN, locking, solids
DN
Max.: 500 mm(19.685 in)Min.: 50 mm(1.969 in)
Pressure
Max.: 1.5 bar(21.8 psi)Min.: 0.1 bar(1.5 psi)
Temperature
Max.: 80 °C(176 °F)Min.: -25 °C(-13 °F)
