نام محصول:
دریچه بهداشتی
نام انگلیسی:
Hygienic valve N4
برند:
Gebr. Rieger GmbH + Co. KG
مشخصات:

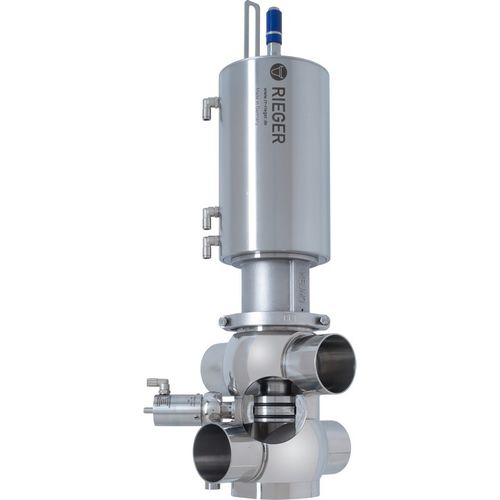

RIEGER hygiene double seal valves N4 are piggable or applicable for highly viscous media. They provide reliable protection for your product by leak-proof separating not compatible products. They prove themselves worldwide in systems for the beverage and food industries.
The design of its one-piece valve housing and the two radial sealings of both valve seats allow, together with the balanced valve disks a perfectly safe CIP/SIP cleaning and an extremely high level of security for your products.
In this model, the two valve seats can be alternatively lifted.

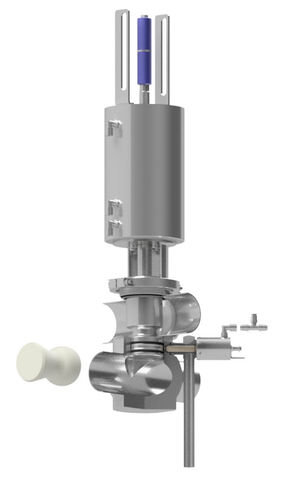

Double seal valve N4 piggable
The development of the RIEGER double sealing valve DD to the piggable variant N4 allows users great savings in resources.
The cost savings of product, water, cleaning agents, environmental pollution recoup the investment within
a very short time.
توضیحات:
Type
plunger
Operation
pneumatic
Body$
double-seat
Applications
for the food industry, hygienic, beverage
Material$
stainless steel
Other characteristics
with seal, piggable, for high-viscosity liquids
DN
Min.: 40 mm(1.575 in)Max.: 100 mm(3.937 in)
Pressure
Min.: 6 bar(87 psi)Max.: 10 bar(145 psi)
Temperature
130 °C, 150 °C(266 °F, 302 °F)
