نام محصول:
دریچه برقی
نام انگلیسی:

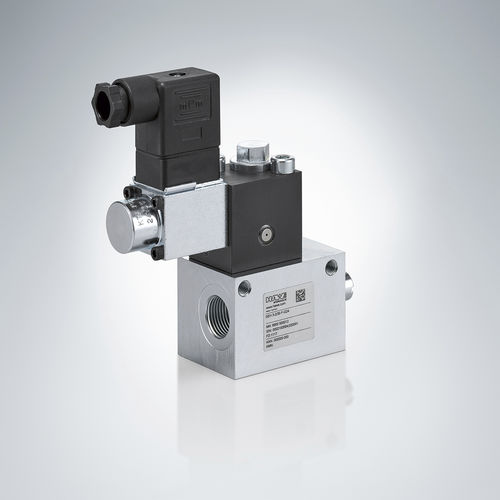

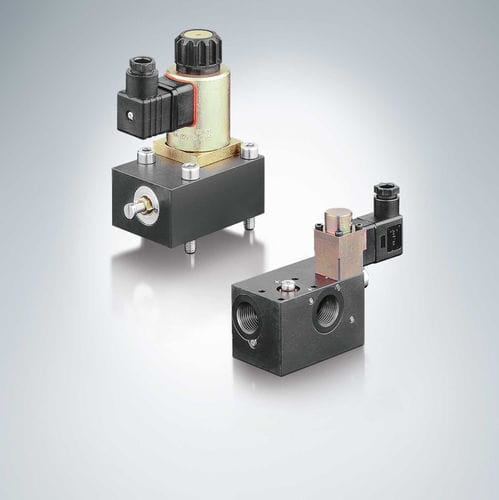

Electrically-operated valve SE series
برند:
HAWE Hydraulik SE
مشخصات:
The flow control valve type SE has a directly actuated metering orifice, which is advantageous for control operations when Qmin is almost zero. The flow control valve type SEH has a pilot-controlled metering orifice which is shown to be beneficial in dynamic systems with short reaction times. The flow control valve type SE and SEH is available as a single valve for pipe connection or as a manifold mounting valve.
Pressure-limiting valves and randomly switchable idle circulation valves are additional options. The flow control valve type SE and SEH controls the operating speed of hydraulic consumers.
Features and advantages
Electric control of consumer working speeds
Automation of operating cycles
Optionally also available with additional valves (bypass check valve, pressure-limiting valve, idle circulation valve)
Intended applications
Construction machines
General hydraulic systems
توضیحات:
Operation
electrically-operated
Function
flow control, pressure-reducing, metering, flow control
Media
for oil
Body$
manifold
Applications
for pipes, for the mining industry, for machine tools
Number of channels
2/2-way
Other characteristics
actuated, proportional
DN
0.375 in, 0.5 in, 0.75 in
Pressure
315 bar, 320 bar(4,568.7 psi, 4,641.2 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 80 °C(176 °F)
Flow rate
20 l/min, 30 l/min, 50 l/min, 90 l/min, 120 l/min(5.28 us gal/min, 7.93 us gal/min, 13.21 us gal/min, 23.78 us gal/min, 31.7 us gal/min)
