نام محصول:
دریچه برقی با فشار بالا
نام انگلیسی:

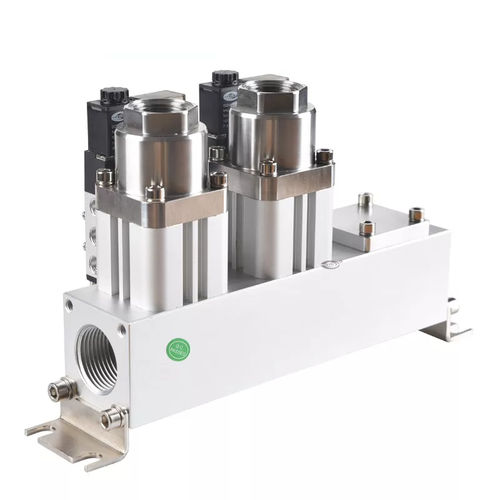

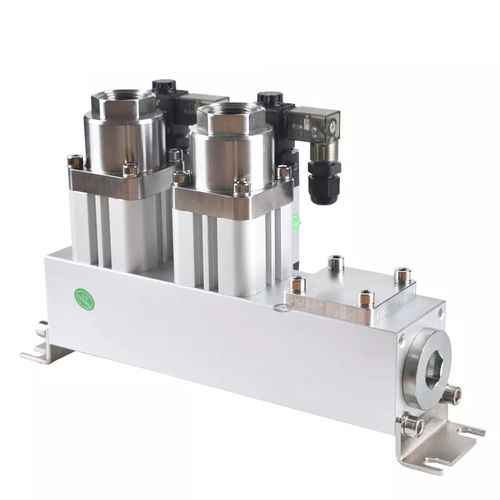

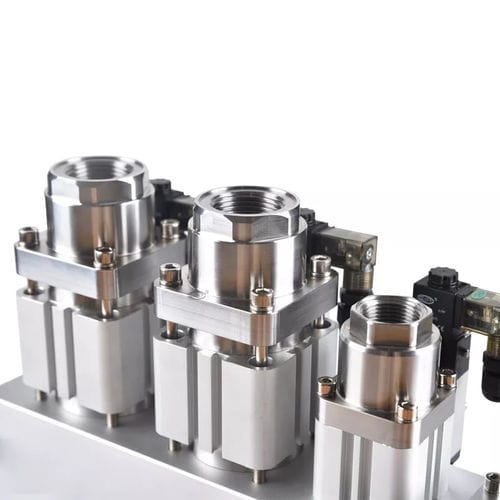

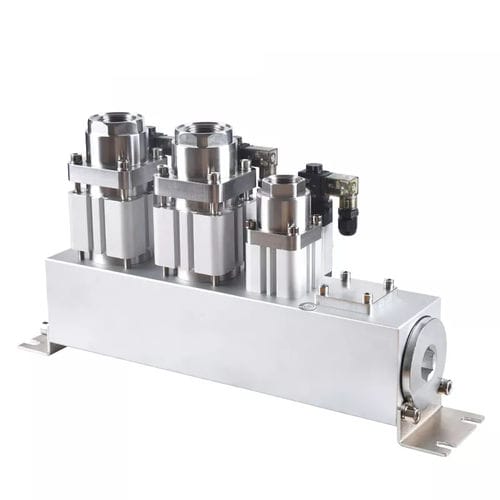

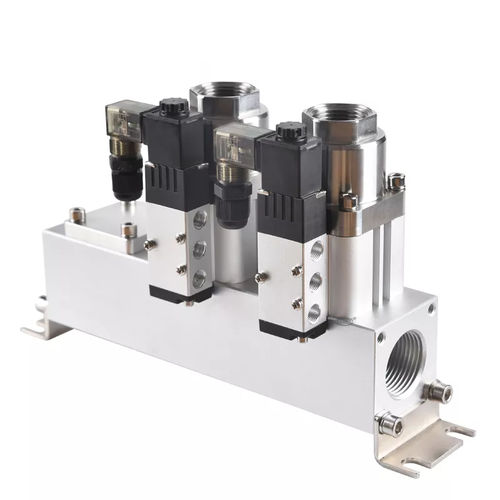

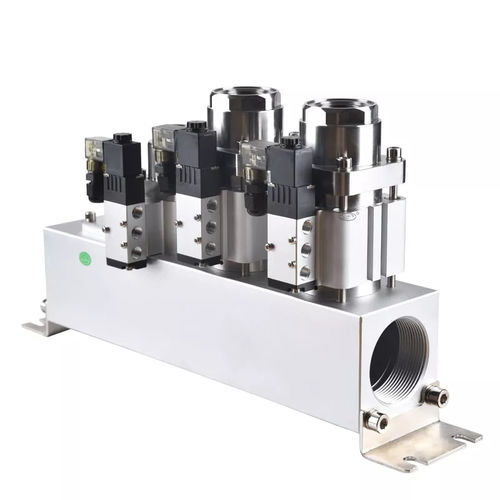

High-pressure solenoid valve VMK series
برند:
Ningbo VPC Pneumatic Co., Ltd.
مشخصات:
VMK valves have a coaxial design, meaning that the inlet and outlet ports are located on the same axis. This design optimizes the airflow path, reduces friction and energy loss, and improves fluid control efficiency. The same model offers a wide selection of diameters for flexible applications with different flow requirements.
Product Feature
1. The design of coaxial valve reduces the working resistance of fluid inside the valve body, which makes the fluid pressure more equalized and improves the stability of the valve under high and low pressure conditions.
2. A variety of sealing materials can be selected to pass gaseous, liquid, gelatinous, pasty, high viscosity and contaminated working media.
3. Stainless steel body and special synthetic metal seat, adapt to a variety of harsh environments, including high temperature and corrosive media.
※ VPC support customization of coaxial valve with other specifications or special needs.
توضیحات:
Control
pilot-operated
Ports/positions
2/2-way
Function
normally closed, normally open
Medium
hydraulic
Body
stainless steel, aluminium, manifold
Process connection
G 3/4, G 1, G 2
Other characteristics
high-pressure, corrosion-resistant, IP65, for aggressive media, for high-viscosity products
Valve plug seal material
NBR
DN
20 mm, 25 mm(0.787 in, 0.984 in)
Voltage
24 V, 110 V, 220 V
Temperature
Min.: -20 °C(-4 °F)Max.: 160 °C(320 °F)
Pressure
Min.: 0 MPaMax.: 16 MPa
