نام محصول:
دریچه بررسی کرایوژنیک
نام انگلیسی:

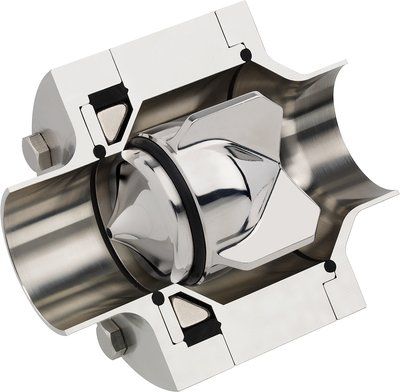

Cryogenic check valve 1500 MAGROS
برند:
STÖHR ARMATUREN GmbH & Co KG
مشخصات:

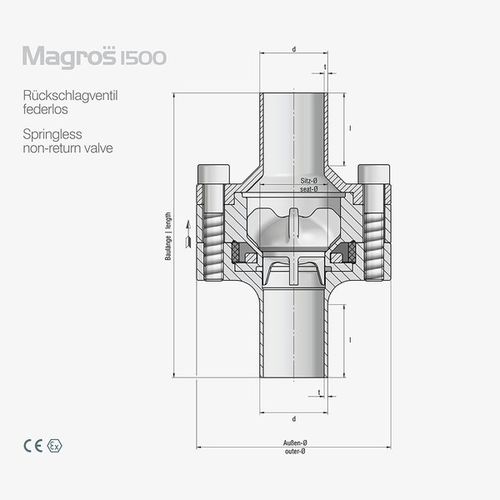

Series MAGROS 1500 – the springless Non-Return-Valve
– Both available for ambient and cryogenic media tempertures:
— ambient valve from -30° C to + 50° C (243 K to 323 K)
— cryogenic valve from -271° C to -30° C (2 K to 243 K)
– Check valve with springless locking mechanism
– Virtually no disposal of dirt due to a springless design
– Almost noiseless operation due to avoided vibration
– Virtually maintenance-free operation due to magnetic control of the cone
– Actuation: solenoid
– Straight body
– After exceeding the opening pressure, decreasing energy loss with
increasing valve opening, and in fully opened state as very low
– Low pressure drop (Δp) due to flow-optimised valve cone
– Optional installation in vacuum-insulated lines by tightly welded body type
– Nominal pressure: PN40
– Nominal sizes: DN6 to DN100
توضیحات:
Fluid
for gas, for hydrogen, for sour gas, for oxygen
Body
weld
Applications
for the chemical industry, low-pressure, for the gas industry, medium-pressure, for cryogenic liquids
Material
stainless steel
Other characteristics
horizontal, axial, cryogenic, top-mounted
DN
Min.: 6 mm(0.236 in)Max.: 100 mm(3.937 in)
Pressure
40 bar(580.2 psi)
Temperature
Min.: -271 °C(-456 °F)Max.: 50 °C(122 °F)
