نام محصول:
دریچه بررسی کرایوژنیک
نام انگلیسی:
Cryogenic check valve 05411
برند:
HEROSE
مشخصات:

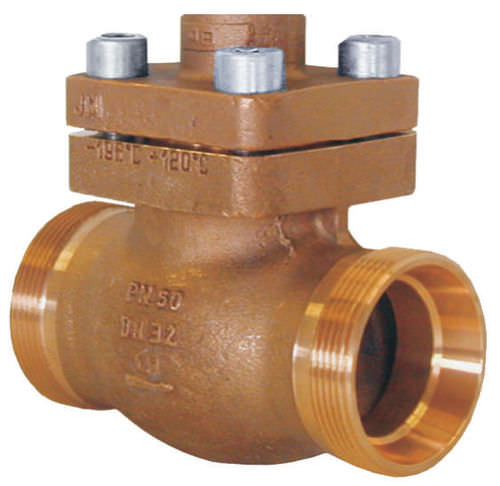

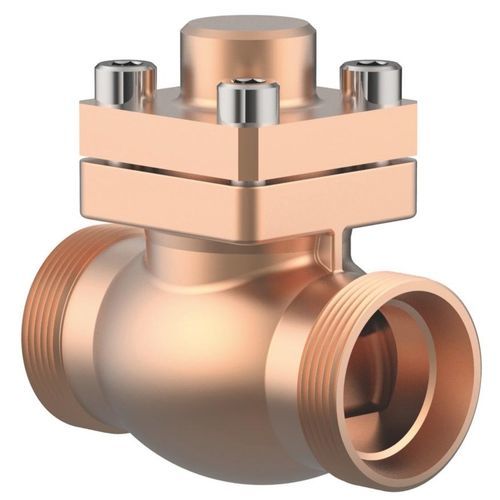

The Type 05411 of cryogenic check valves from Herose has spring and bronze body and cap. The device is cleaned and degreased for oxygen service. It is also equipped with a male thread utilized for union connection. Its applications include air gases, vapors and cryogenic liquefied gases.
توضیحات:
Type
disc
Fluid
for oxygen
Body
male-male
Material
bronze
Other characteristics
spring, cryogenic
DN
10 mm, 20 mm, 32 mm, 40 mm, 50 mm(0.394 in, 0.787 in, 1.26 in, 1.575 in, 1.969 in)
Pressure
50 bar(725.2 psi)
Temperature
Min.: -196 °C(-321 °F)Max.: 120 °C(248 °F)
Flow rate
2.2 m³/h, 7.8 m³/h, 14.1 m³/h, 26.3 m³/h, 43.2 m³/h(77.69 ft³/h, 275.45 ft³/h, 497.94 ft³/h, 928.78 ft³/h, 1,525.59 ft³/h)
