نام محصول:
دریچه بررسی هوای فشرده
نام انگلیسی:

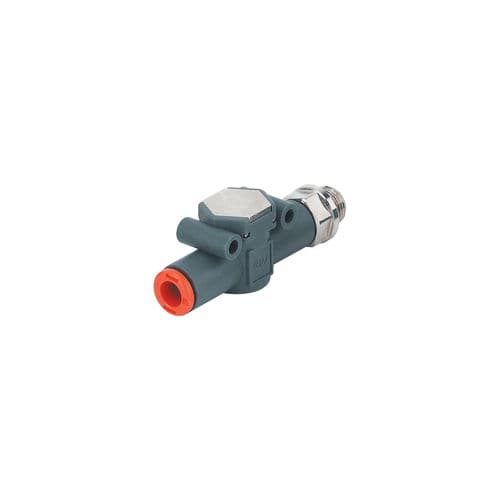

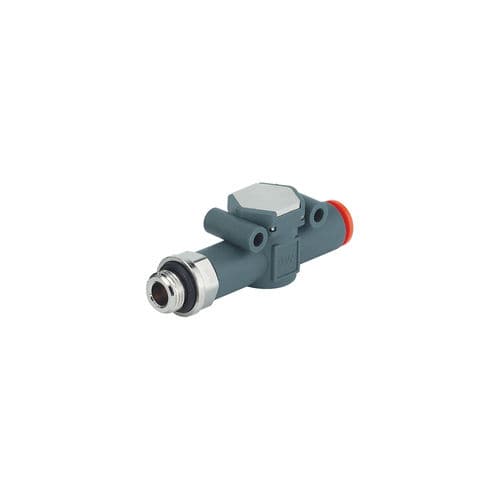

Compressed air check valve VNR L series
برند:
METAL WORK
مشخصات:
The VNR L check valve belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel. Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting.It is still the only check valve with holes for wall mounting.
• Short description: : Non return valve VNR LØ 4
• Quantity per package: : 0
• Minimum order quantity: : 0
• Unit of measure: : items
• Body material : Technopolymer
• Functional denomination : Non return valve in line
• Max temperature (°C) : 60
• Min temperature (°C) : -20
• Product’s series : Series LINE ON LINE
• Push-in fitting for pipe (Ø) : 4
• Suggested tube (Type) : Rilsan PA11-N
توضیحات:
Fluid
for compressed air
Body
male, push-in
Material
brass
Other characteristics
in-line
DN
4 mm, 6 mm, 8 mm(0.157 in, 0.236 in, 0.315 in)
Pressure
Min.: 0.5 bar(7.3 psi)Max.: 12 bar(174 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 60 °C(140 °F)
