نام محصول:
دریچه بررسی مسکن فلزی
نام انگلیسی:
Metal housing check valve C series
برند:
THE LEE COMPANY
مشخصات:

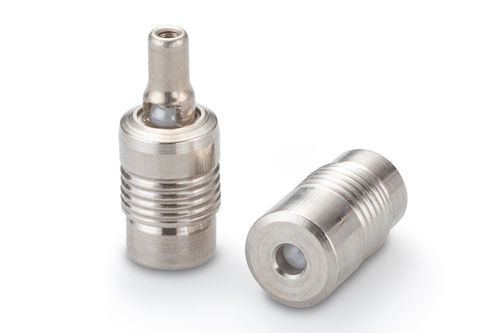

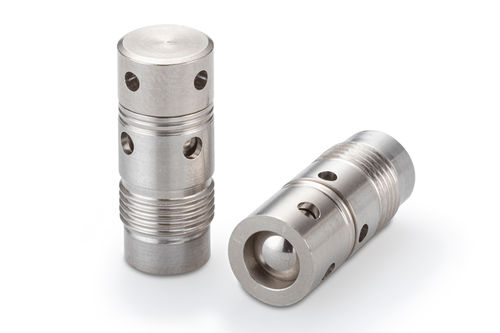

The insert style check valves feature an integral locking end that provides secure retention and prevents bypass leakage, making installation simple without the need for threads, sealants, or O-rings.
Standard versions are available in 5.5 mm and 8.0 mm diameters with both forward and reverse configurations. They can also be purchased with an integral safety screen to mitigate contamination or a ceramic ball design for aggressive environments. Additionally, our side exit variations offer unparalleled design flexibility.
This threadless, cartridge-style, one-way valve offers higher flow capacity over our standard 558 Series valve. This valve features The Lee Company’s field-proven locking end that provides secure retention into metal manifolds without the need for threads, O-rings, or sealants. The valve features all stainless steel construction with a high quality metal seat providing low leakage, repeatable cracking pressure, and long life. The valve is 100% functionally tested to ensure performance.
توضیحات:
Type
ball
Fluid
for water, for gas, fuel oil, fuel, diesel
Body
miniature
Applications
safety, for cylinders, for air conditioning, exhaust, medium-pressure, for buses, for car, for metal housing
Material
stainless steel
Other characteristics
spring, compact, in-line, standard
DN
Min.: 5.5 mm(0.217 in)Max.: 8 mm(0.315 in)
Pressure
Min.: 0 bar(0 psi)Max.: 280 bar(4,061.1 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 149 °C(300 °F)
