نام محصول:
دریچه بررسی دیسک
نام انگلیسی:

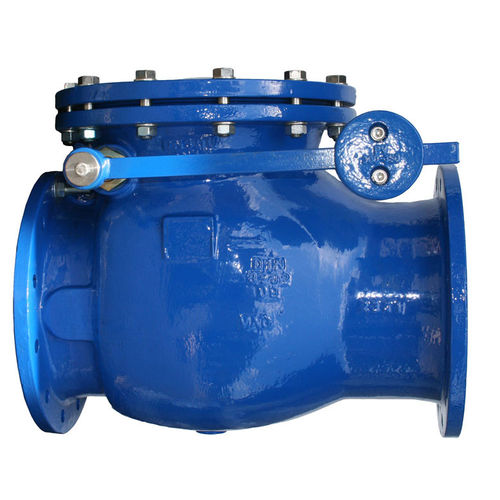

Disc check valve AW
برند:
VAG-Group
مشخصات:
Straight-seat check valve with internal shaft and optional lever and weight. Highly cost-efficient due to high opening degree. Available with stainless-steel wire guard and limit signal for the open position as options. Its premium-quality materials make the valve particularly resistant to the media conveyed. The large inspection cover allows for easy maintenance. Suitable for use in waste-water applications, in power plants and in industry.
Sealing system/standard: Metallic sealing in accordance with EN 16767
Face-to-face length: acc. to EN 558, basic series 48 (DIN 3202, F6)
With flange ends on both sides acc. to EN 1092-2
With lever and weight (located on the right in flow direction)
For horizontal pipelines
Lever and weight useable for position indicator
Connection between shaft and disk by key
With large access bonnet for easy maintenance
توضیحات:
Type
disc
Fluid
for water
Connexion
DIN
Body
flange
Material
stainless steel, cast iron, bronze
Other characteristics
standard, horizontal
DN
Min.: 50 mm(1.969 in)Max.: 800 mm(31.496 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
