نام محصول:
دریچه بررسی دیسک
نام انگلیسی:

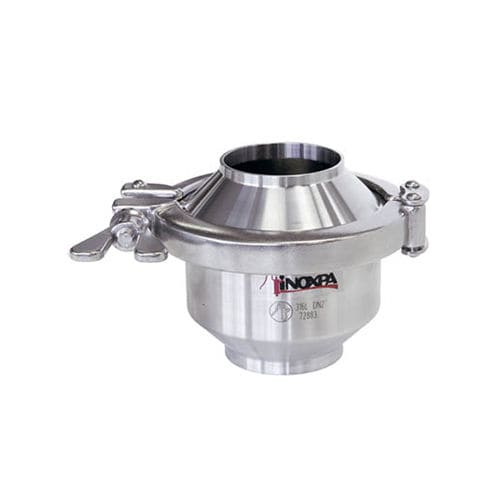

Disc check valve 72700 series
برند:
INOXPA
مشخصات:
A check valve, or non return valve, is a valve that prevents the fluid from flowing backwards and ensures that it flows in only one direction. It can be used to prevent the loss of prime of the pump and water hammer.
It is used in the food-processing, cosmetics, pharmaceutical and chemical industries as well as in the beverage, wine and oil production.
The check valve opens when the pressure of the fluid exceeds the pressure exerted by the spring. When the two pressures are compensated, the valve closes. A higher counterpressure will ensure the valve closes.
When there are two pumps operating alternately, the check valves are installed at the outlet of each pump to prevent the backflow when the pump is stopped. The obturation disc is provided with a perforation for a minimal circulation flow to avoid water stagnancy.
Available sizes: DN 25/1″ to 100/4″.
Easy assembly/disassembly with the clamp.
Reduced size design.
Connections: Male DIN 11851.
Parts in contact with the product: AISI 316L (1.4404)
Other stainless steel parts: AISI 304 (1.4301)
Spring: AISI 302 (1.4319)
Gasket: EPDM according to FDA 177.2600
Internal surface finish: Ra ≤ 0,8 μm
External surface finish: Machined (turned)
توضیحات:
Type
disc
Connexion
DIN
Body
male
Applications
backflow
Material
stainless steel
Valve plug seal material
EPDM
Other characteristics
spring
DN
Max.: 100 mm(3.937 in)Min.: 25 mm(0.984 in)
Pressure
10 bar(145 psi)
Temperature
Max.: 140 °C(284 °F)Min.: -10 °C(14 °F)
