نام محصول:
دریچه بررسی دیسک
نام انگلیسی:
Disc check valve 05
برند:
Brandoni
مشخصات:
The valves in Series 05 are check valves with cast iron bodies, that are manufactured in accordance with the most severe product norms, and in conformity with the quality requirements of EN ISO 9001.

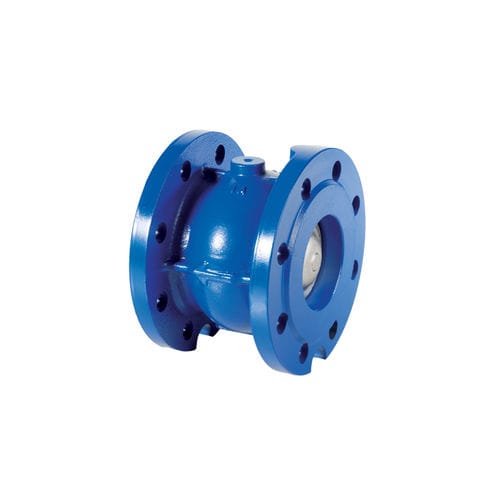

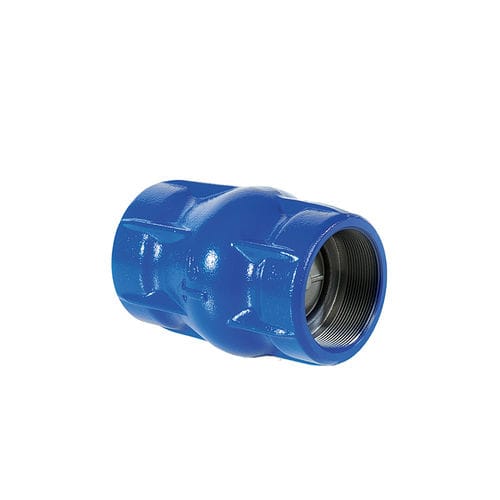

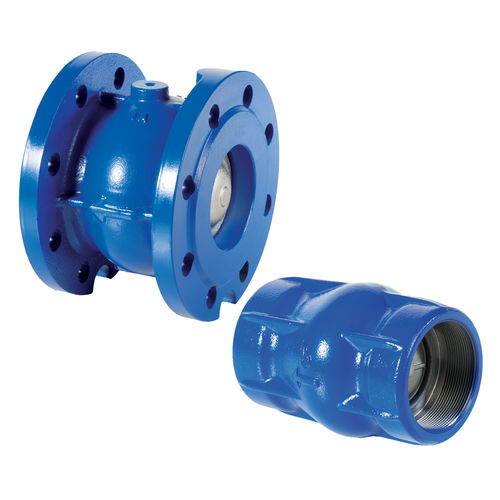

They are available in flanged versions, from DN 50 to DN 250, and in threaded versions, from DN 50 to DN 100.
The valves are suitable for installation in heating and conditioning plants (HVAC), for water treatment and distribution, pump stations, agricultural applications, industrial applications, fire fighting applications, for compressed air, oils and hydrocarbons.

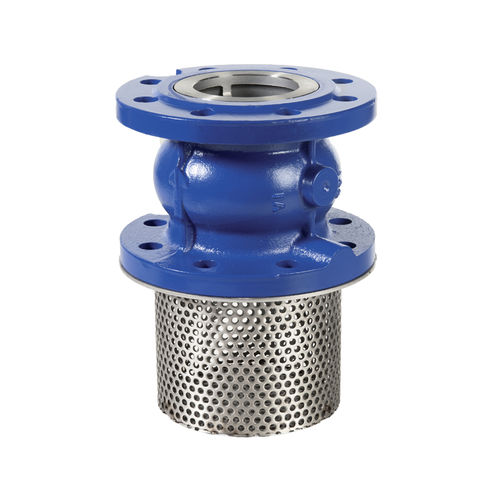

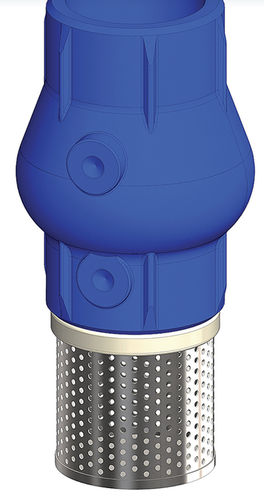

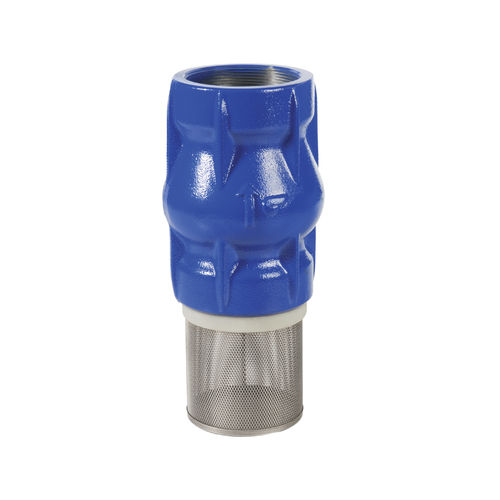

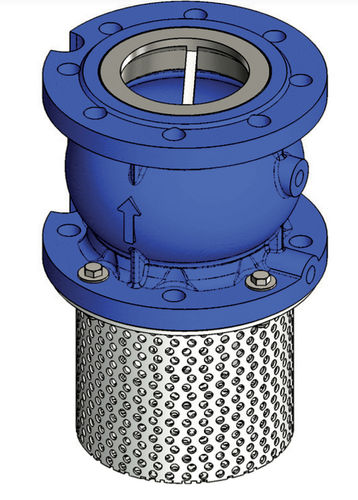

(Please ensure the choice of the corresponding item) YES: for in-line installation (horizontal or vertical position) and as foot valves.
The shape of the body and shutter minimizes turbulence and head loss.
NO: for steam.
Accessories
Plugs for drain
Mini-valves for drain
Filter baskets (see Filtration)

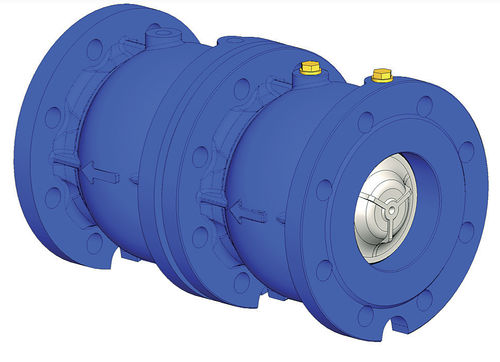

Special version Double check group
توضیحات:
Type
disc
Fluid
for water, for compressed air
Body
threaded
Material
cast iron
Other characteristics
spring, in-line, horizontal
DN
Max.: 250 mm(9.843 in)Min.: 50 mm(1.969 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
Temperature
Max.: 150 °C(302 °F)Min.: -10 °C(14 °F)
